Description

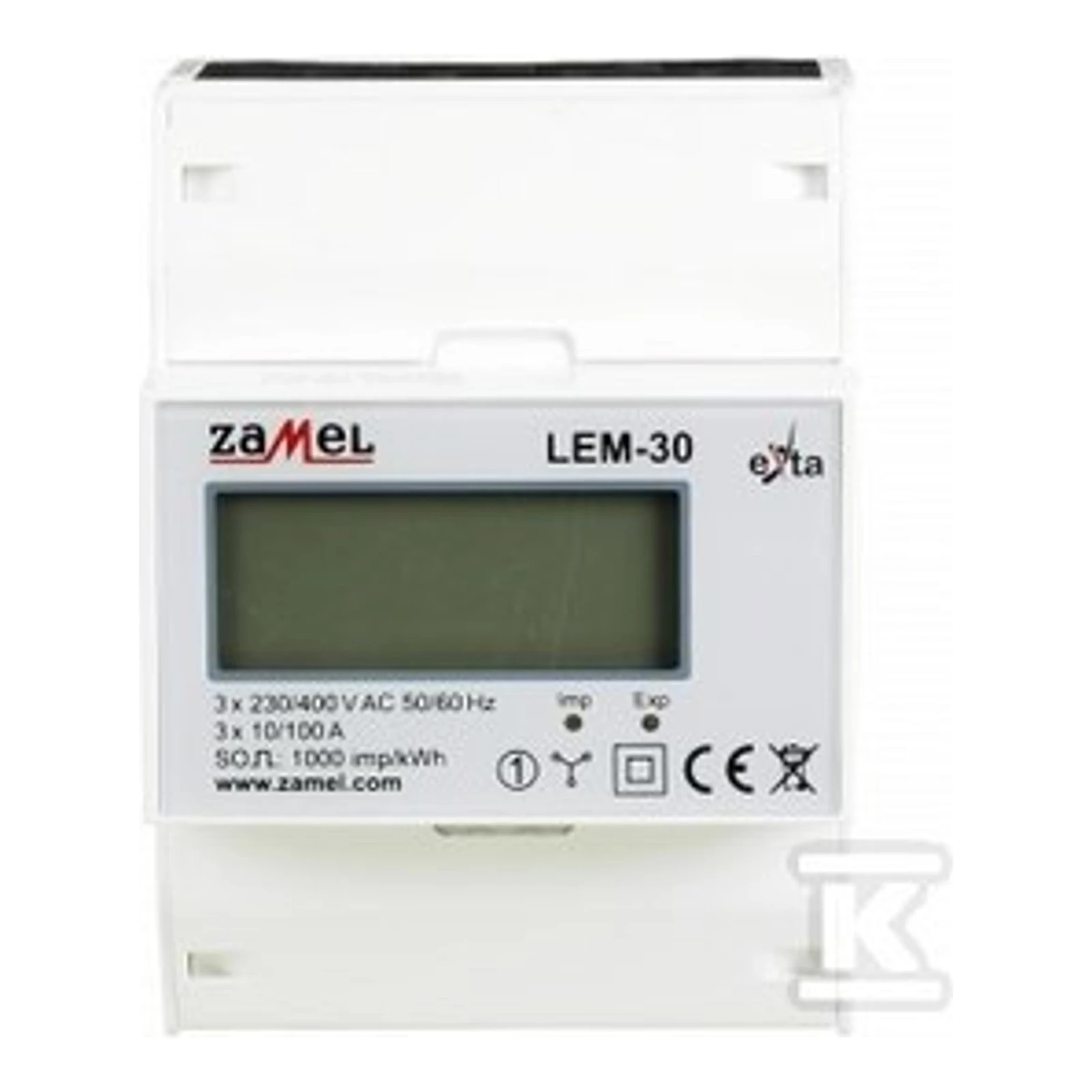

The LEM-30 three-phase energy meter is a digital energy meter designed for monitoring electricity consumption in three-phase installations in commercial and industrial applications. The device measures and displays total active energy (kWh) on a backlit LCD display and provides a pulse output for cooperation with external meters or recorders.
Purpose: mounting in distribution boards on TH35 rail; can operate as a main or additional measuring meter.
Manufacturer Information
Manufacturer: ZAMEL Sp. z o.o., a company based in Pszczyna, Poland. ZAMEL specializes in automation devices and electrical equipment intended for building and industrial installations.
Electrical Parameters
- Reference Voltage: 3 x 230 V / 400 V AC
- Voltage Tolerance: -15 ÷ +10 %
- Nominal Frequency: 50 / 60 Hz
- Basic / Maximum Current: 3 x 10 A / 100 A
- Power Consumption of the Meter: 10 VA / 2 W
- Measurement Accuracy: class 1 (according to IEC61036 / IEC 62053-21)
- Display: LCD, 5+2 digit meter
- Pulse Output: OC type (SO+ / SO-), voltage 12 ÷ 27 V DC, output current < 27 mA, constant: 1000 imp/kWh, pulse duration: 90 ms
- Number of Electrical Terminals: 10
Mechanical Parameters
- Mounting: on TH35 rail (according to EN 60715)
- Protection Class: IP51
- Protection Level: II
- Surge Category: II
- Pollution Degree: 2
- Dimensions (L x W x D): 72 x 100 x 66 mm
- Weight: 0.700 kg
- Wire Cross-section (main connection): 4 ÷ 25 mm²; (pulse output) min. 0.2 mm²
