Description

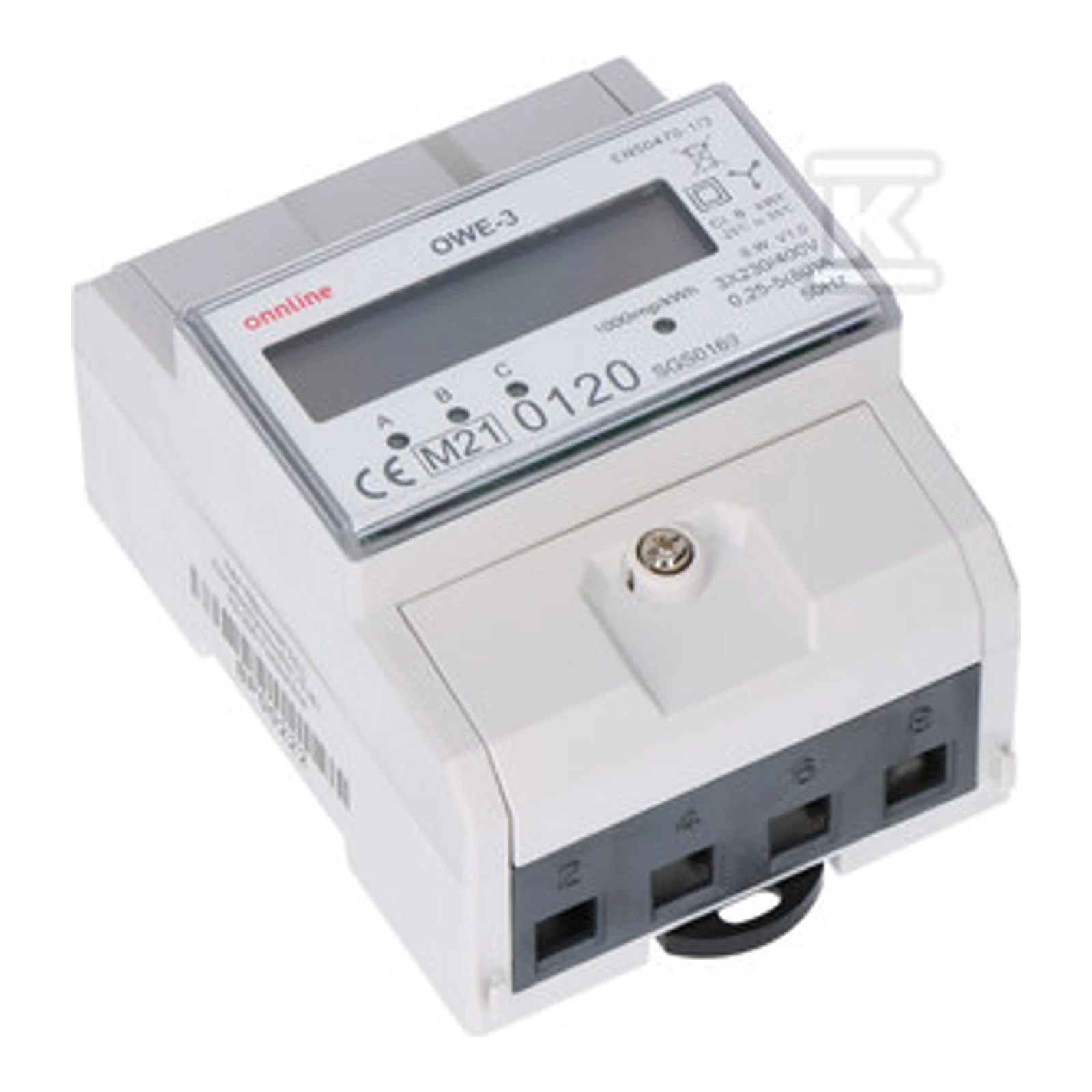

OWE-3 is a three-phase, static (electronic) energy consumption meter designed for direct measurement of active energy consumed in three-phase installations. The device generates pulses proportional to the energy consumed, displaying total consumption on a segmented LCD display; individual phases are indicated by red LEDs.
The manufacturer of the meter is ononline (Onninen Sp. z o.o.), offering a device compliant with the requirements of the LVD 2014/35/EU and EMC 2014/30/EU directives. The product has an individual, non-removable factory number (laser engraving) and a 24-month warranty from the date of purchase.
Electrical and Functional Parameters
- Measurement type: active energy consumed AE+ [kWh]
- Configuration: 4-wire installation, 3-phase in direct connection
- Nominal voltage: 3×230/400 V (voltage range 160÷265 V)
- Minimum measured current: 0.04 A; base current: 0.25 ÷ 5 A; maximum current: 80 A
- Nominal frequency: 50 Hz
- Measurement accuracy: class B (EN50470-1/3)
- Pulsed output: open collector, maximum voltage 27 V DC, maximum current 27 mA, pulse constant 1000 imp/kWh, pulse time 35 ms
- Self-consumption of the meter: <10 VA; <2 W
- Current consumption indication: 3×LED (red) for phases A, B, C; reading indication: red LED
- Meter reading range: 0 ÷ 999999.99 kWh; meter constant: 1000 imp/kWh
Mechanical and Installation Parameters
- Housing: PC+ABS plastic
- Insulation protection class: II; degree of protection: IP20
- Connection: screw terminals up to 16 mm²
- Mounting: on TH-35 rail
- Dimensions: 4.5 modules (75 mm)
- Operating temperature: -25 ÷ 55 °C
- Sealing possibility: covers for input and output terminals (sealing location indicated on the housing)
- Connections: terminals 1,3,5 – L1/L2/L3 (supply); 2,4,6 – L1/L2/L3 (load); 7 – neutral wire N; 20 (+) and 21 (–) – pulse output
