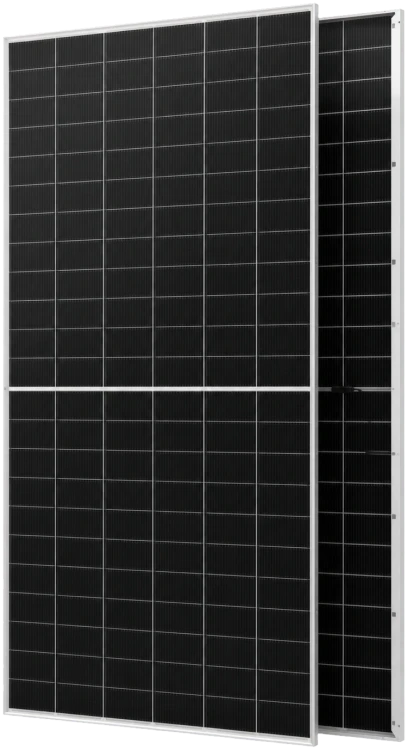

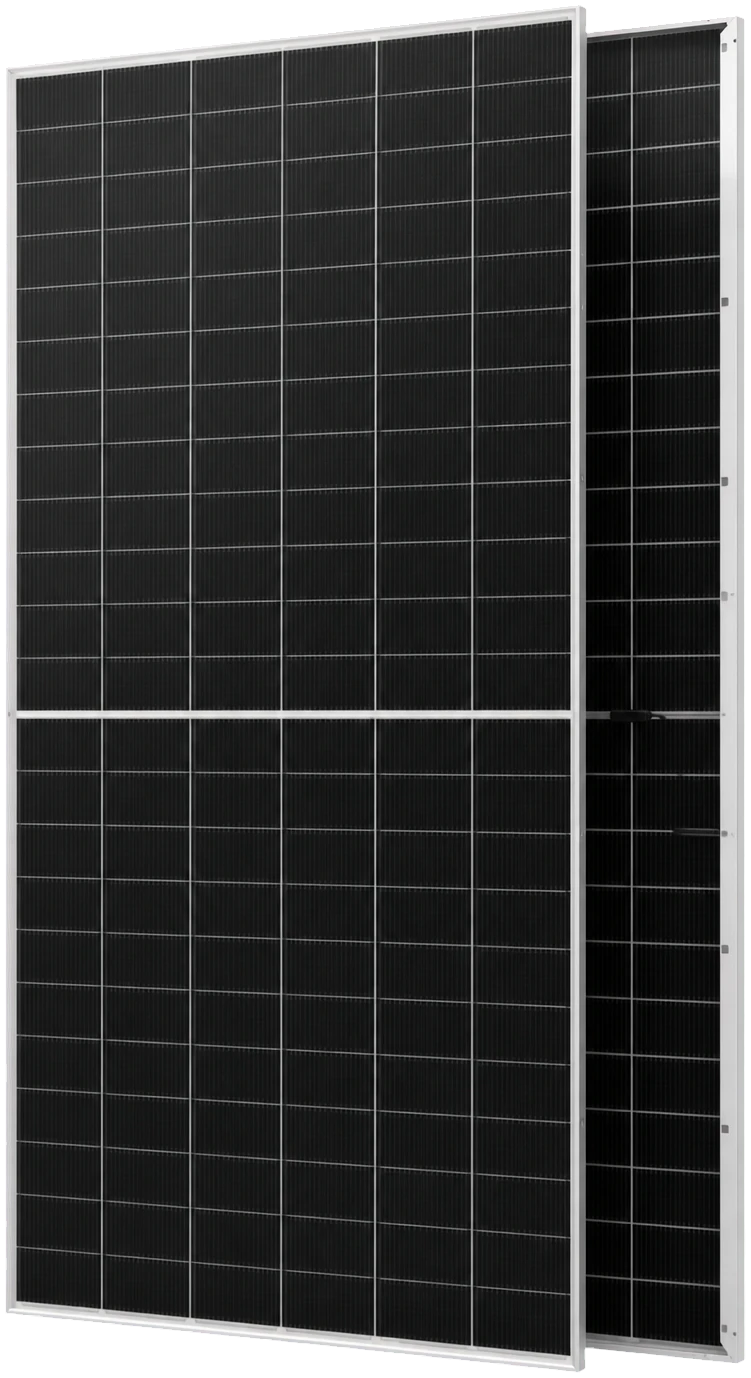

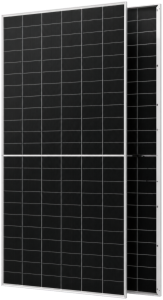

AIKO 645W G645-MCH72DW Glass-Glass Silver Frame photovoltaic panel
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5400
Cechy produktu
Panel parameters
- Panel power 600-650 W
- Cell type Back Contact
- Bifacial Yes
- Glass-glass Yes
- Frame colour Silver
- Sales unit Single unit
- Module height over 200 cm
- Panel power [W] 645
- Module height [cm] 238.2
Opis
AIKO 645W G645-MCH72DW photovoltaic panel is a Stellar 1N+ type module with a bifacial (glass-glass) design and silver frame, engineered for high efficiency and durability. The module uses N-type ABC cells and double 2.0+2.0 mm glass, features 144 cells (6x24) and weighs about 32.3 kg. Dimensions: 2382×1134×30 mm. The product offers a 30-year linear power degradation warranty and declared power tolerance of 0~+3%.
This module is optimised for partial shading performance, improved temperature coefficient, and enhanced resistance to micro-cracks. It is equipped with an IP68 junction box featuring three bypass diodes and 4 mm² cable with compatible MC4/MC4-EVO2A connectors.
Key features
- Rated power 645 W (STC)
- Bifacial glass-glass design, 144 cells (6×24)
- N-type ABC cells and Stellar 1N+ technology
- Double 2.0+2.0 mm glass and silver frame
- IP68 junction box and 3 bypass diodes
- Dimensions 2382×1134×30 mm, weight approx. 32.3 kg
