DC+AC Connection Box with Surge Protection 1000V Type 2, 2x PV String, 2x MPPT, AC Surge Protector Type 2, 20A 3-F SH-102 DCAC
Product code: ME6822
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description
Short Description

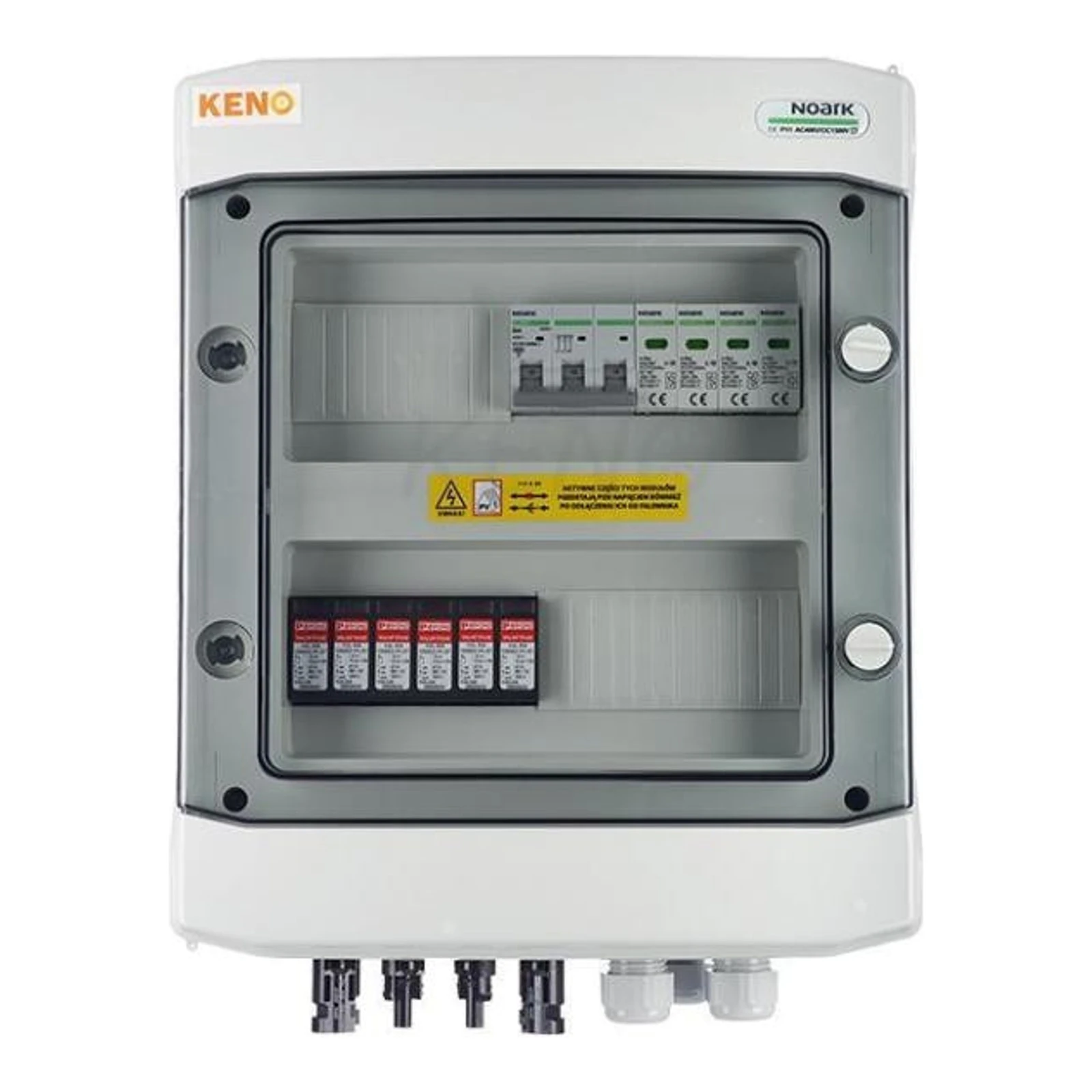

The SH-102 DCAC connection box is a compact device that combines DC and AC protections for photovoltaic installations with two independent PV paths (2x string) and two MPPTs. It is equipped with Type 2 surge protectors on the DC side and an AC Type 2 surge protector, with a 20A 3-phase AC overcurrent protection.
Manufacturer Information
The SH-102 DCAC model is offered by KENO in the combiner box catalog. KENO manufactures prefabricated boxes compliant with IEC 61439 standards, using components from suppliers such as Phoenix and Noark, and provides a standard 5-year warranty on many models.
Electrical Parameters
- Number of PV Strings: 2
- Number of Surge Protectors (DC): 2
- Type of DC Surge Protector: Phoenix T2
- AC Surge Protector: Noark T2 (Type 2)
- AC Overcurrent Breaker: Noark B 20A 3F
- Insulation Class (Rated insulation voltage): 400 V AC, 1500 V DC
- UV Resistance: Yes
- Standard Warranty: 5 years
Mechanical and Installation Parameters
- Protection Degree: IP 65
- Mounting Method: surface mounting
- Protection Class: II
- Mechanical Resistance: compliant with IK 08 (STANDARD series)
- Operating Temperature Range: -25°C – +60°C (STANDARD series)
