DC Tool Kit

DC Tool Kit is a fully assembled set of tools designed for installation and assembly work in DC photovoltaic systems. The kit includes tools for preparing wires, crimping sleeves and connectors, and performing precise tasks related to the installation of DC wires and components.

The tool kit is manufactured by Rennsteig (listed in the catalog description as the tool manufacturer in the package offered by KENO). The kit is distributed by KENO and catalogued as the RENNSTEIG WERA DC Tool Kit (KENO catalog code: 624 105-58). The set combines tools from a renowned manufacturer (Rennsteig, Wera) with the assembly and availability provided by KENO.

Electrical / Technical Parameters

• Purpose: work in DC installations (photovoltaics) — wire preparation, crimping, connector installation
• Crimping tool for sleeves: working range 0.14–16 mm2 (the set includes a Rennsteig crimping tool for sleeves 0.14–16)
• Wire stripping tools: range 0.08–16 mm2 (the set includes a Rennsteig wire stripping tool 0.08–16 mm2)
• Torque screwdriver: range 1.7–3.5 Nm (the set includes a torque screwdriver with Wera bits)
• Additional elements: bit holder / set of Wera bits and keys necessary for mounting PV components

Mechanical Parameters and Kit Contents

• Kit contents (according to KENO catalog description):
  • Wire stripping tool 0.08-16 mm2 (Rennsteig)
  • Crimping tool for sleeves 0.14-16 (Rennsteig)
  • Torque screwdriver 1.7-3.5 Nm with a set of bits (Wera)
  • Additional keys and tools: hex key, flat-open-end wrench, cutters, keys for MC4 connectors, MC4 connector crimping correctness tester (KENO)
• Tool manufacturer: Rennsteig / Wera (elements included in the kit)

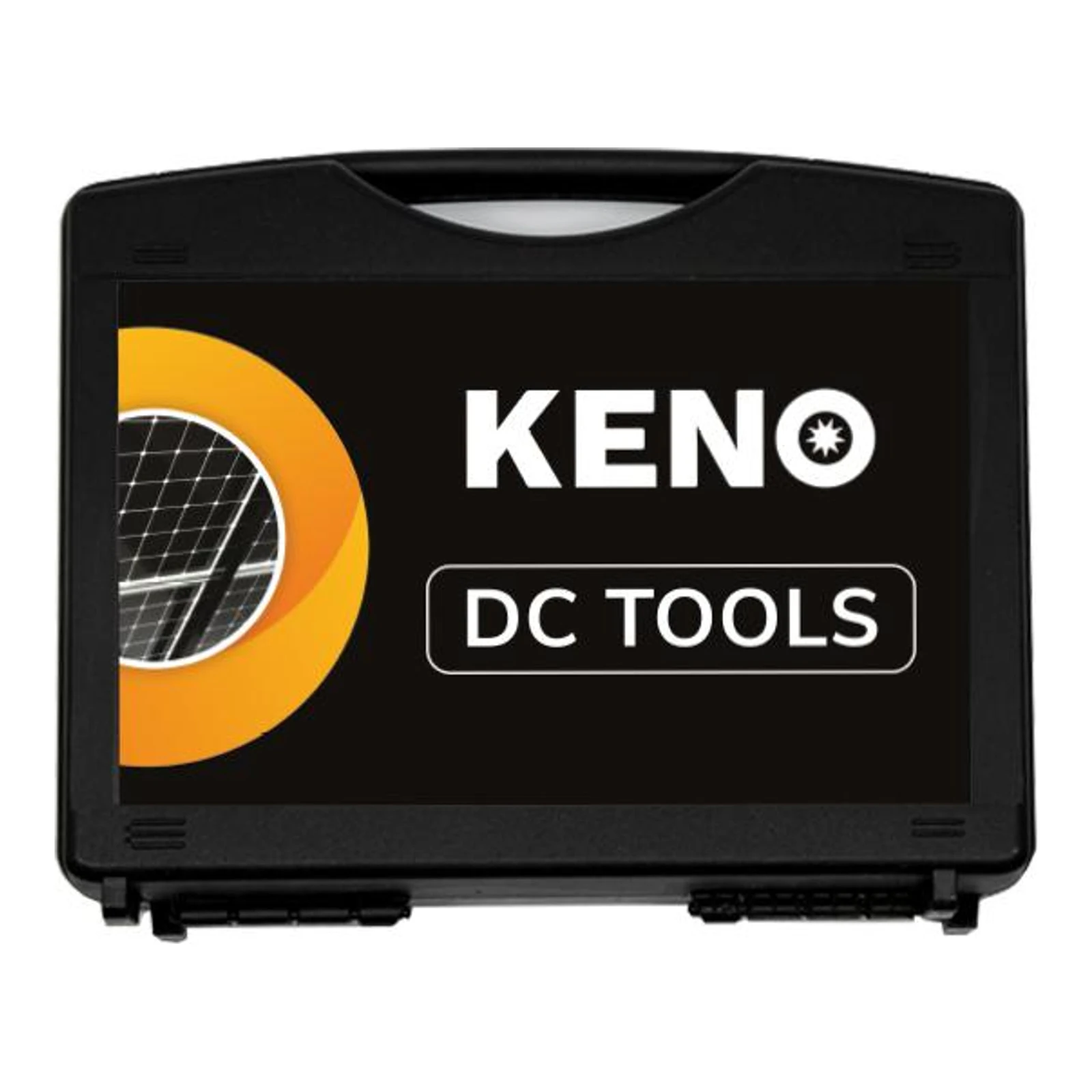

• Delivery form: case / pouch containing the complete tool set (illustration and description in the catalog card)
• Mechanical purpose: processing wires, crimping sleeves and MC4 connectors, precise tightening with torque setting
• Warehouse notes: the product is available in KENO's offer as a complete DC tool kit (catalog code 624 105-58)
