DEYE Battery Set GB-L24 PRO 24kWh (high voltage)
Product code: ME6724
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description

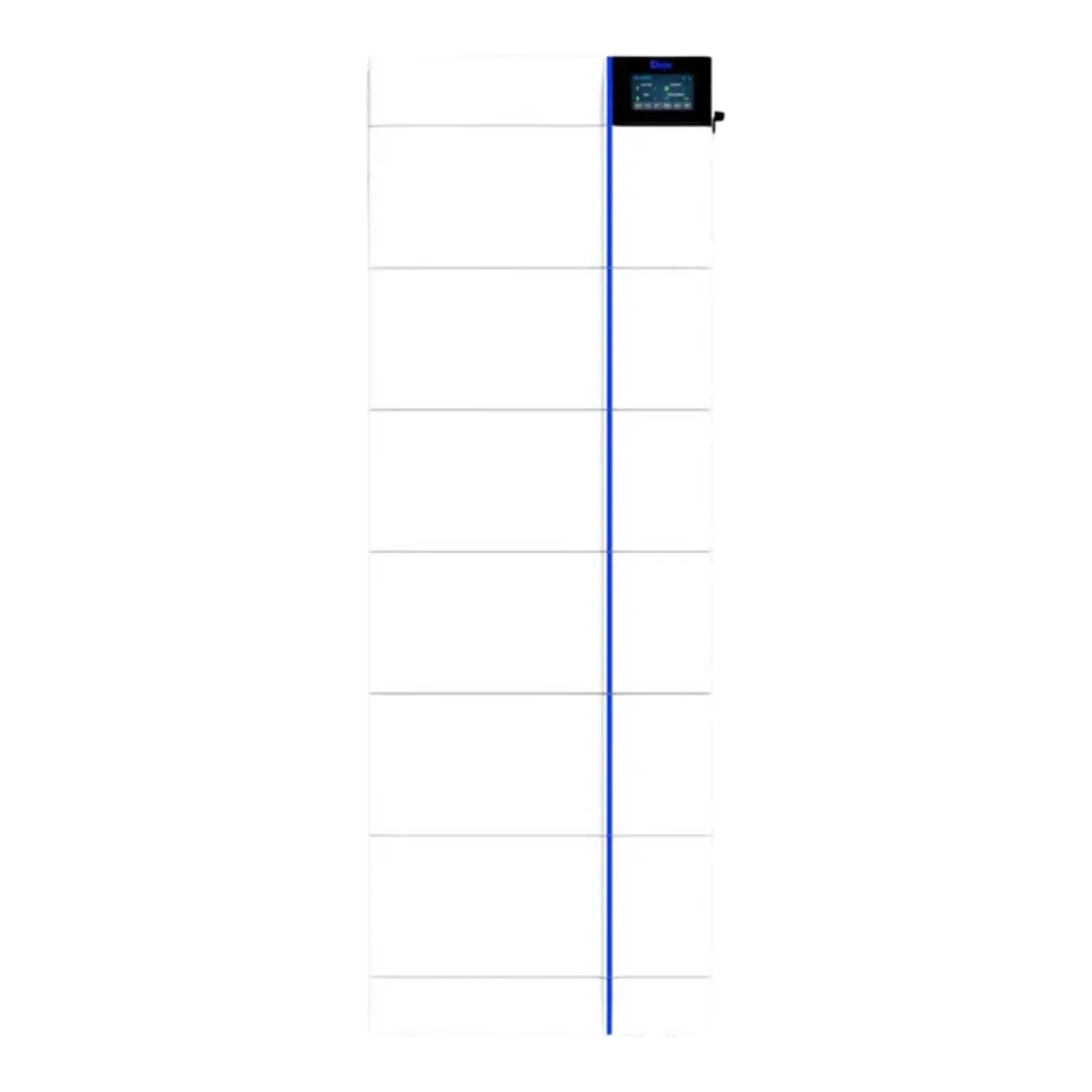

GB-L24 PRO is the largest variant from the GB-L series described in the datasheet — a high-voltage LiFePO4 battery set with six GB-LM 4.0 modules connected in series. The system delivers a nominal energy of 24.54 kWh and usable DC energy of 22.08 kWh, designed for extensive installations requiring greater capacity.
Manufacturer: Ningbo Deye ESS Technology Co., Ltd — a manufacturer of energy storage systems based in Ningbo, Zhejiang, China. The company provides modular battery solutions, high voltage cluster controllers, and installation accessories.
Electrical and Operational Parameters
- Cell Chemistry: LiFePO4
- Module Model: GB-LM 4.0 (4.09 kWh, nominal 102.4 V, 40 Ah)
- System Configuration: 6 modules in series (GB-L24)
- Nominal System Voltage: 614.4 V
- Operating Voltage Range: 166.4 ~ 700 V
- System Energy: 24.54 kWh
- Usable DC Energy: 22.08 kWh (90% DOD, tested at 25°C)
- Nominal Charge/Discharge Current: 40 A (recommended 20 A)
- Peak Discharge Current: 50 A (2 minutes, 25°C)
- Operating Temperatures: charging 0~55°C, discharging -20~60°C
- Communication Interfaces: CAN2.0, RS485; LCD display showing SOC%, power and total voltage
- Life Cycle: ≥6000 cycles to EOL 70% at 25±2°C, 0.5C/0.5C
Mechanical Parameters
- Enclosure Protection Class: IP65
- Operating Humidity: 5% ~ 90%
- Altitude: ≤2000 m
- Dimensions (L/W/H): 540 × 385 × 1530 mm
- Weight: 253 kg
- Installation Location: floor-mounted
- Recommended DOD: 0.9
- Storage Temperature: 0 ~ 35°C
