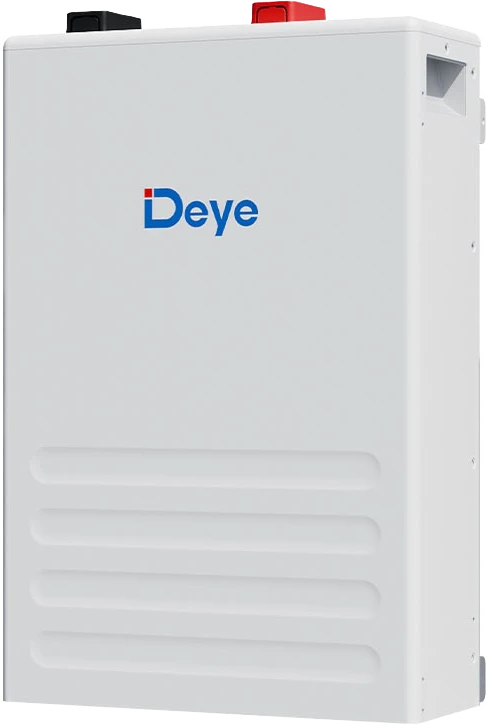

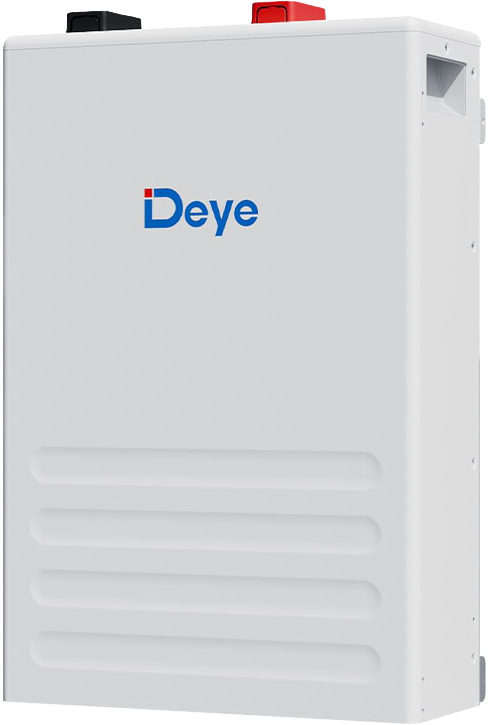

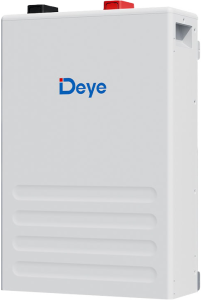

DEYE Energy storage SE F5 Plus 5.12 kWh (PRO-C)

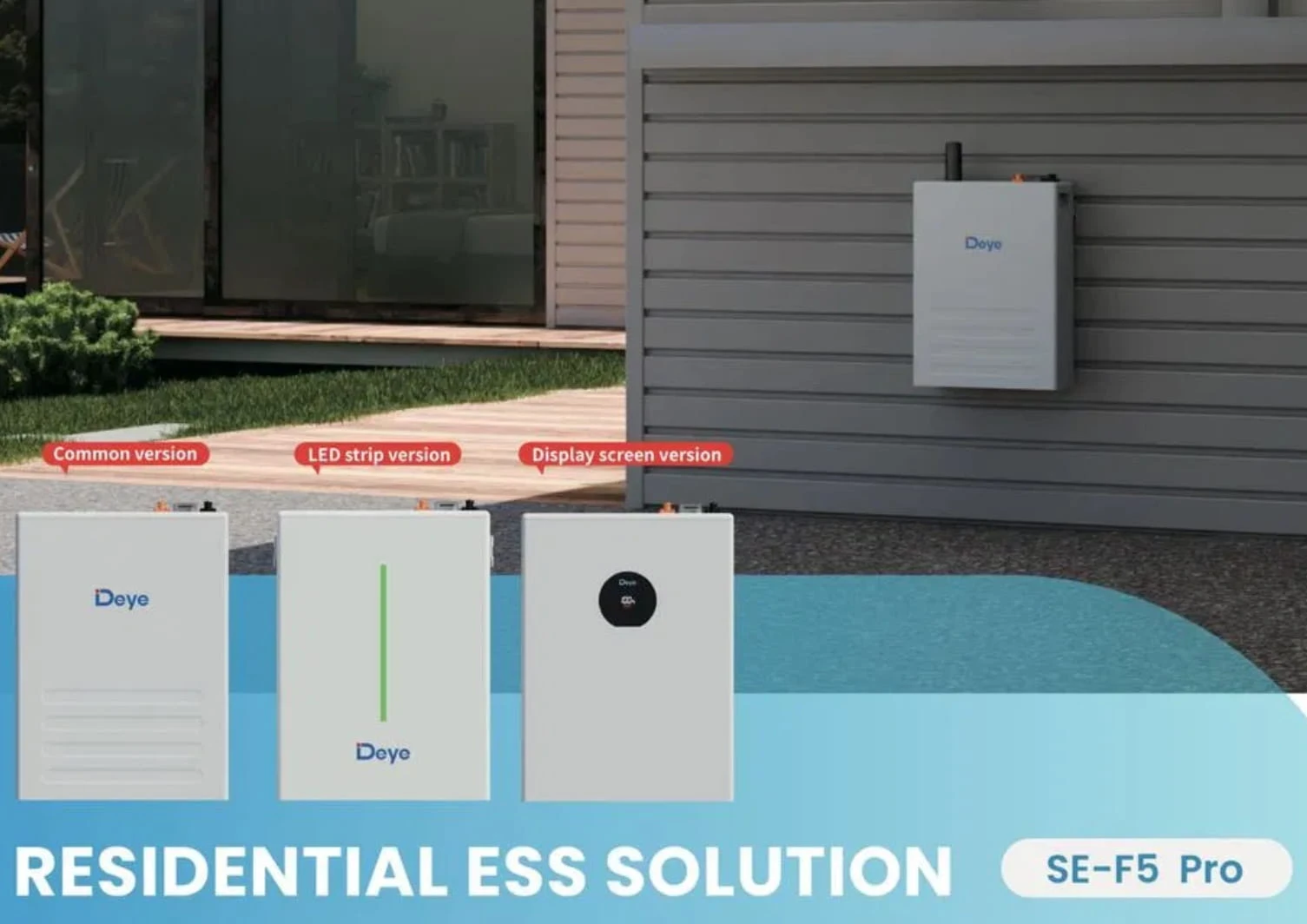

Deye SE F5 Pro 5.12 kWh battery – New model 2025 (standing/hanging)

The subject of the announcement is the Deye SE F5 Pro battery with a capacity of 5.12 kWh.
The model from the latest SE F Pro series is intended for home and business energy storage systems. It offers high energy density, fast charging and full integration with Deye inverters and other ESS systems.

Brand new product, with manufacturer's warranty.

⸻

The most important advantages of Deye SE F5 Pro
• Capacity 5.12 kWh
• LiFePO4 technology – highest safety and durability
• Maximum 1C charging and 1C discharging
• Advanced BMS system with active fuse
• Support for up to 32 batteries in parallel (possibility of expansion to large warehouses)
• Natural cooling, no noise
• Stable operation in a wide temperature range from minus 20 to plus 55 C
• Local and remote monitoring mode via Deye applications
• Wall, floor or stacking installation

Technical parameters
• Model: SE F5 Pro
• Capacity: 100 Ah
• Nominal energy: 5.12 kWh
• Nominal voltage: 51.2 V
• Operating voltage range: 44.8 V to 57.6 V
• Max. charging current: 100 A
• Max. discharge current: 100 A
• Peak discharge: 150 A for 120 seconds
• Recommended depth of discharge: 90 percent DoD
• Food cycles: over 6000 cycles (25 C)
• Degree of protection: IP21
• Dimensions: 404 x 547 x 141 mm
• Weight: approximately 44 kg
• Operating temperature: from 0 to 55 C (charging), from minus 20 to 55 C (discharging)
• Communication: CAN, RS485, optional WiFi and Bluetooth
• Max. 32 pieces in parallel (or 64 with CAN Box)

Application
• Home installations
• Corporate installations
• PV energy storage
• Work on and off grid
• Deye hybrid systems
• UPS emergency power supply

Warranty: 10 years
