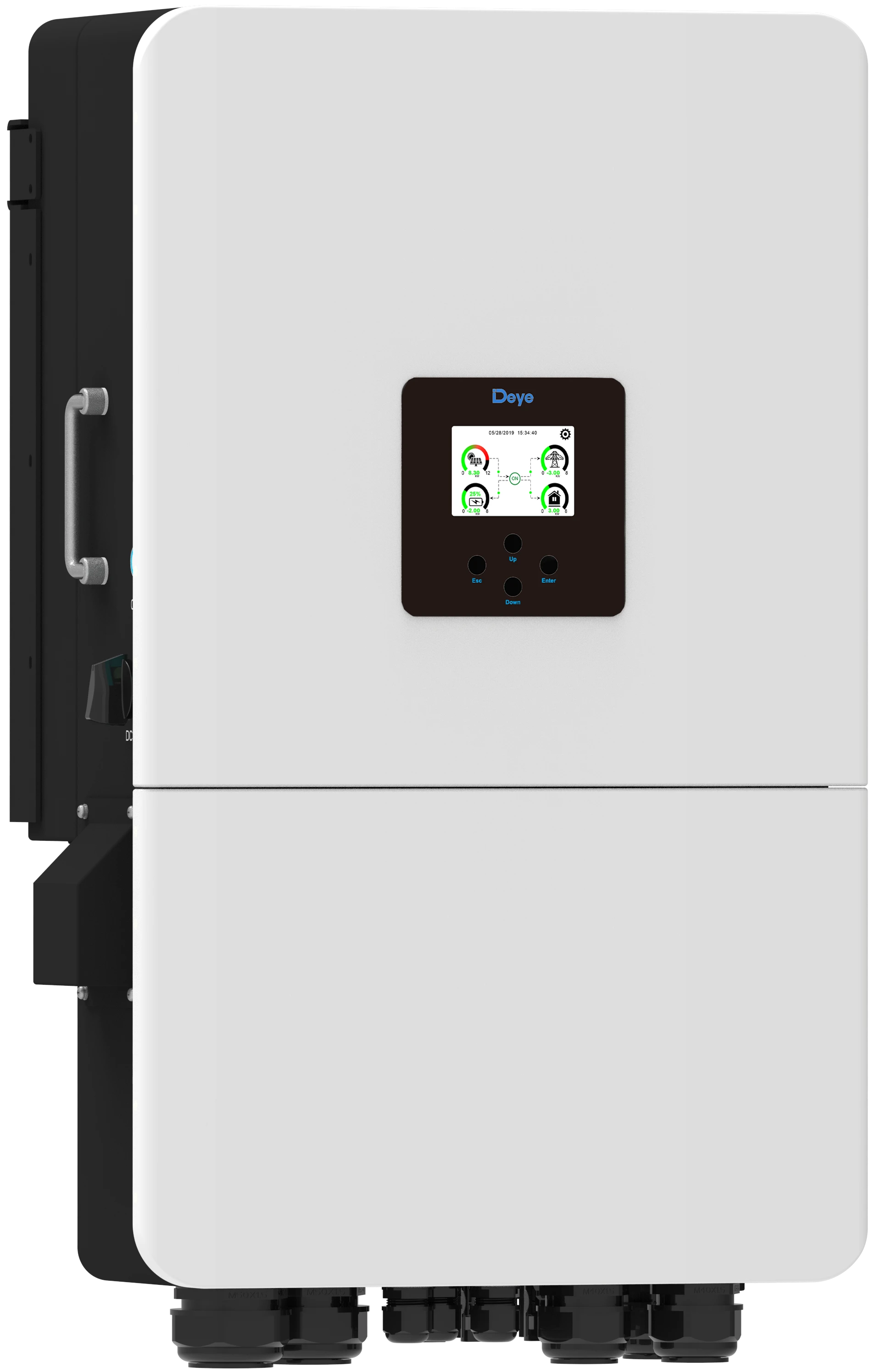

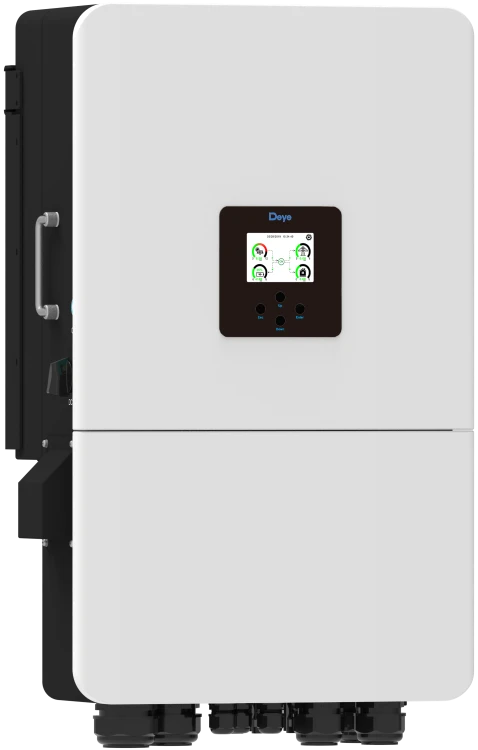

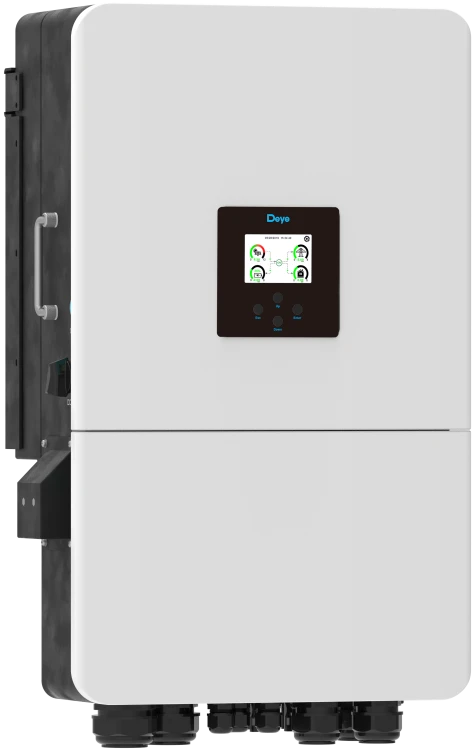

DEYE Hybrid inverter 15kW SG05LP3 3-phase low voltage

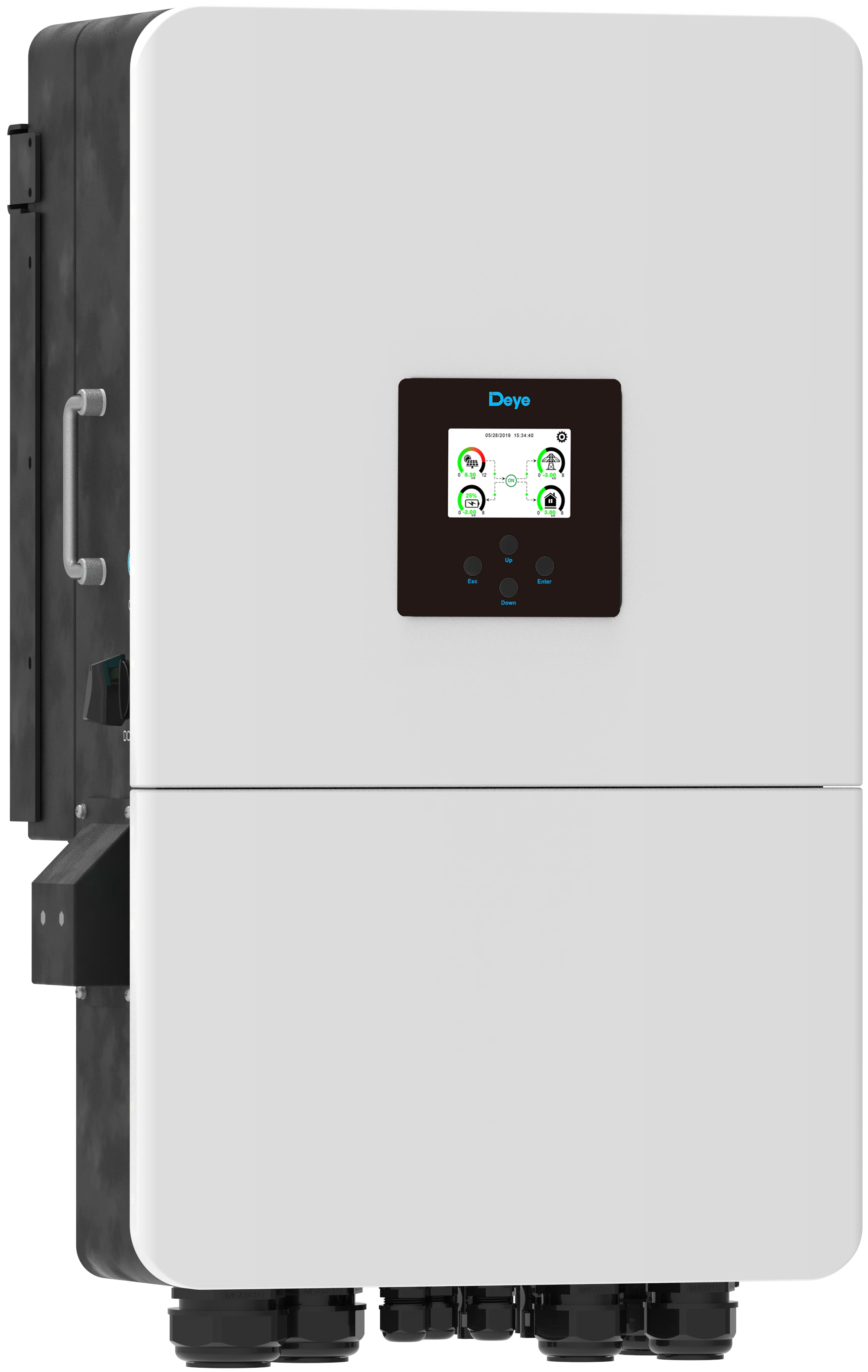

Modern hybrid inverter Deye SUN-15K-SG05LP3-EU-SM2 15 kW is an efficient solution for three-phase photovoltaic installations with the possibility of cooperation with a low-voltage energy storage facility. The device combines the function of a PV inverter, battery operation and emergency power supply, providing greater energy independence and better control over energy consumption.

The SG05LP3 model works with batteries 48V/40-60V, supports charging and discharging with current up to 280 A, and the maximum PV input power is 22,500 W. The inverter has 2 MPPT trackers and the possibility of connecting strings in the system 2+1, which makes it easier to adapt the installation to various roof layouts.

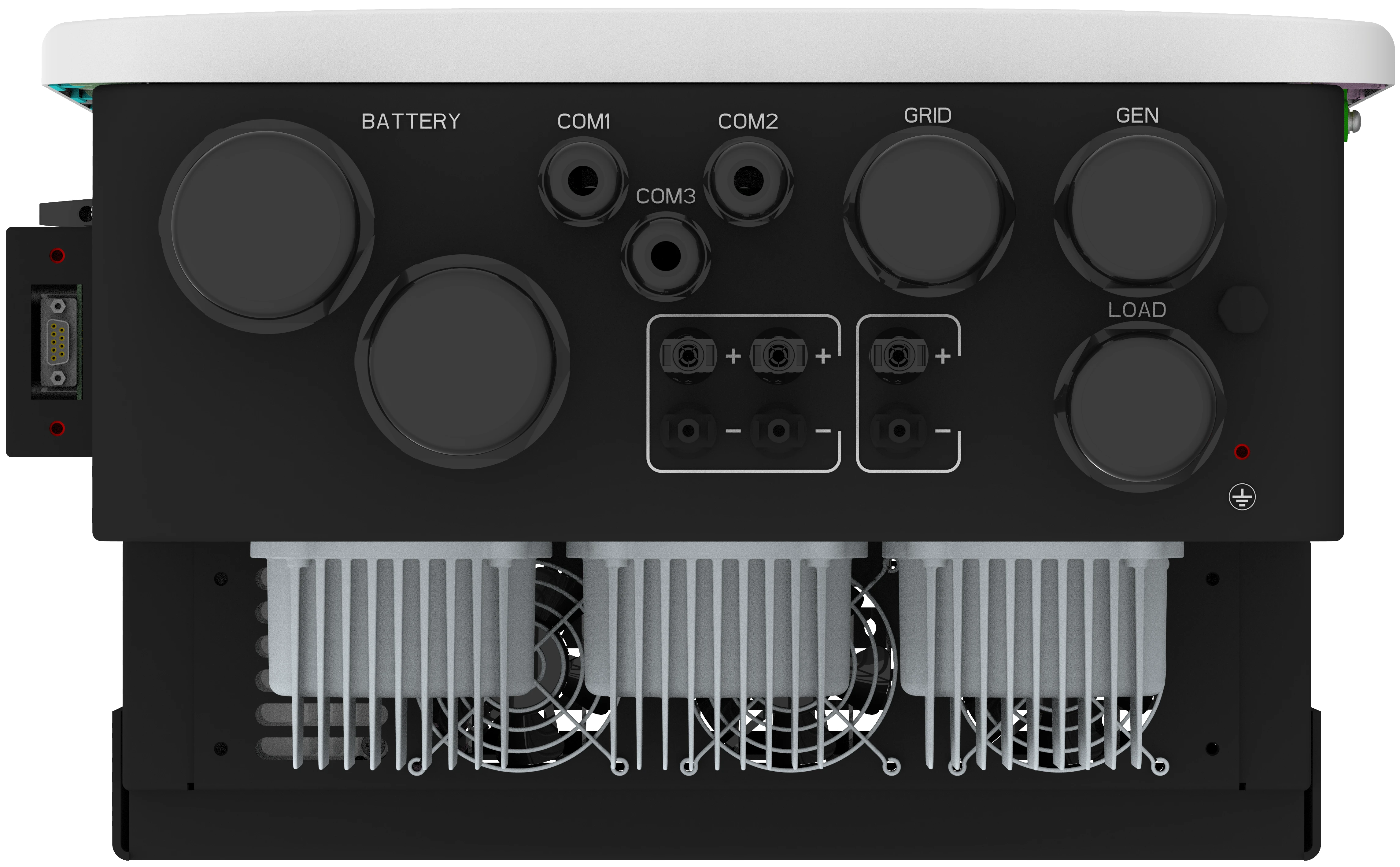

Thanks to communication via Wi-Fi/LAN/4G/Bluetooth/GPRS and interfaces RS485, RS232 and CAN, the user can conveniently monitor the system operation and integrate the inverter with compatible energy storage units. Enclosure with protection class IP65 allows for installation in demanding conditions, and intelligent air cooling ensures stable operation of the device.

Key features

• Three-phase hybrid inverter with power 15 kW
• Cooperation with a low-voltage energy storage facility 48 May
• Maximum PV input power: 22,500 W
• Maximum PV Voltage: 800V
• MPPT working scope: 160–650V
• 2 MPPT trackers and string arrangement 2+1
• Battery charging and discharging current: up to 280 A
• Support for lithium-ion and lead-acid batteries
• Possibility of working parallel to 10 inverters
• AC coupling function for expanding an existing PV installation
• Possibility of cooperation with a diesel generator
• 6 battery charging and discharging time intervals
• Online monitoring via application or portal
• Degree of protection IP65
• Maximum efficiency 97.6%

Technical parameters

Model: SUN-15K-SG05LP3-EU-SM2
AC Rated Power: 15,000 W
Maximum AC apparent power: 16,500 VA
Number of phases: 3
Battery type: Lead-acid / Lithium-ion
Battery Voltage Range: 40–60V
Maximum charging current: 280 A
Maximum discharge current: 280 A
Maximum PV input power: 22,500 W
Maximum PV Voltage: 800V
PV Start Voltage: 160V
MPPT voltage range: 160–650V
Rated PV Voltage: 550V
Number of MPPT / strings: 2 / 2+1
Maximum PV input current: 36+20 A
Maximum PV short circuit current: 54+30 A
Maximum efficiency: 97.6%
European efficiency: 97.0%
MPPT efficiency: >99%
Degree of protection: IP65
Cooling: intelligent air cooling
Dimensions: 456 × 750 × 268.5 mm
Weight: 50.6 kg
Working temperature: -40°C to +60°C

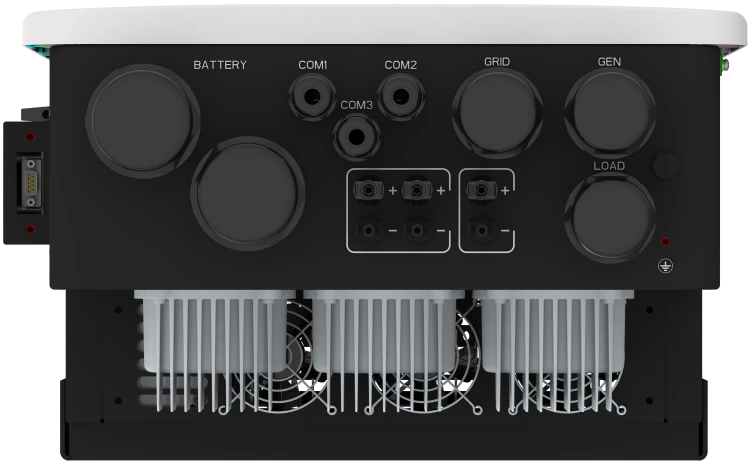

Communication: RS485 / RS232 / CAN
Monitoring: GPRS/Wi-Fi/Bluetooth/4G/LAN optional
Warranty: 5 years / 10 years depending on manufacturer's conditions

Warranty: 10 years
