FoxAIR 15kW Monoblock Heat Pump 3-phase R290

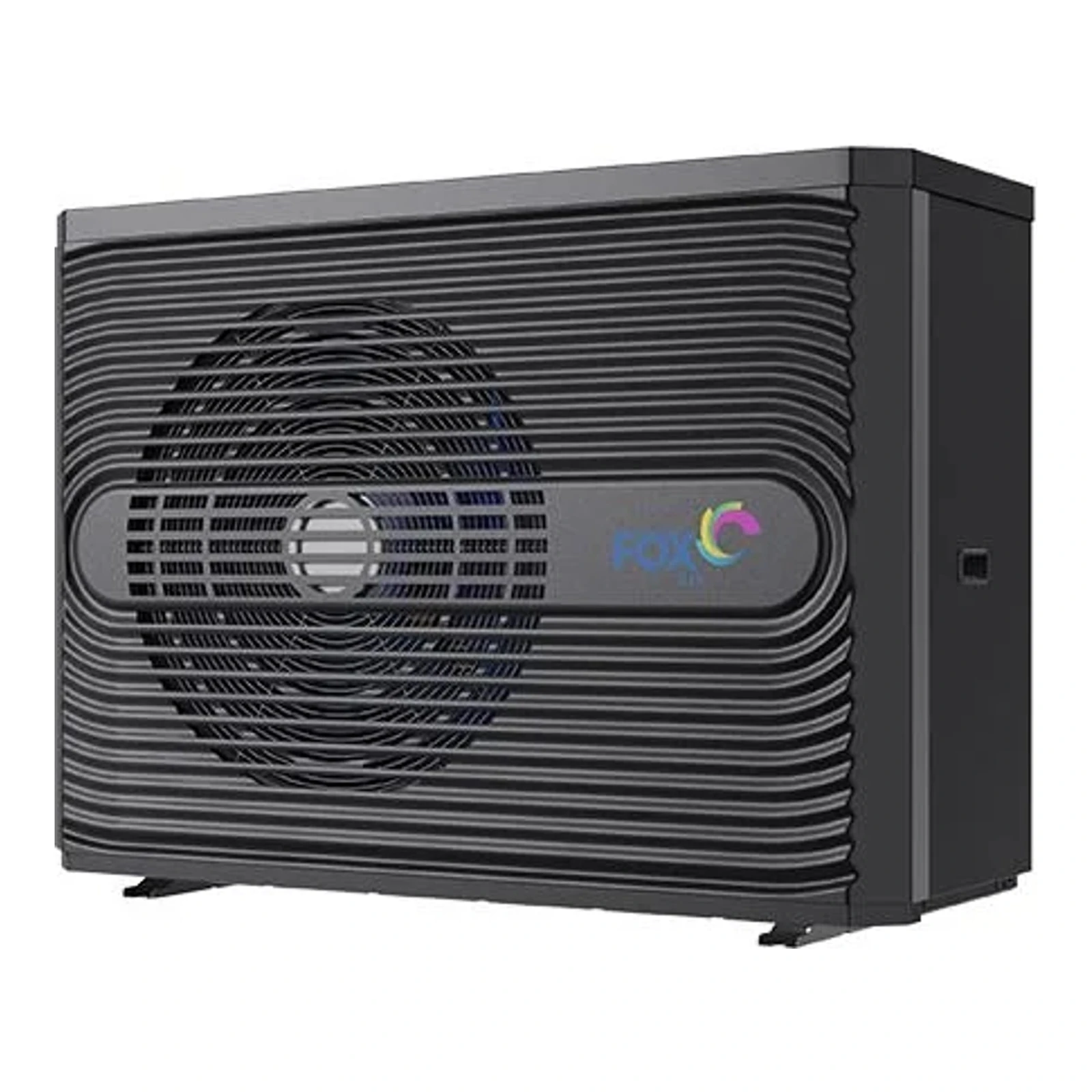

The FoxAIR GL-15-3 monoblock heat pump (15 kW) is an air-water unit designed for heating and cooling buildings. The GL-15-3 model operates in three-phase installations (380–415V/3N~ /50Hz), uses the eco-friendly refrigerant propane (R290), and offers high seasonal efficiency along with a wide range of heating and cooling power.

Manufacturer: FoxAIR is a provider of HVAC solutions offering the GREEN LINE series. Devices from this series are equipped with HIGHLY brand compressors and SHIMGE brand circulation pumps. The GL-15-3 model is a monoblock with a housing made of galvanized steel with an ASA coating, designed to operate in ambient temperatures ranging from -25°C to 43°C.

Electrical and Technical Parameters

• Power Supply: 380–415V / 3N~ / 50Hz
• Heating Power Range: 5.28–14.95 kW
• Input Heating Power Range: 0.98–3.85 kW
• COP (A7W35): 3.88–5.39
• Cooling Power Range (A2W35): 4.61–11.60 kW
• Input Cooling Power Range: 0.95–3.60 kW
• SCOP (moderate climate) +35 °C / +55 °C: 5.15 / 3.96
• Maximum Electric Power: 5.3 kW
• Maximum Input Current: 10.5 A
• Refrigerant: R290, amount 0.85 kg (CO2 equivalent: 0.0026 t)

Mechanical Parameters

• Device Dimensions (L/W/H): 1287 × 458 × 928 mm
• Transport Dimensions (L/W/H): 1420 × 540 × 1080 mm
• Net Weight: 160 kg
• Water Flow: 1.7 m3/h
• Operating Pressure (low/high side): 0.8 MPa / 3.0 MPa
• Internal Water Pressure Drop (max): 20 kPa
• Circulation Pump Lifting Height at Nominal Flow: 85 kPa
• Number of Fans / Motor Type: 1 / DC motor
• Fan Motor Power (min-max): 60–120 W, speed 220–600 RPM
• Sound Pressure Level (1 m): 44 dB(A)
