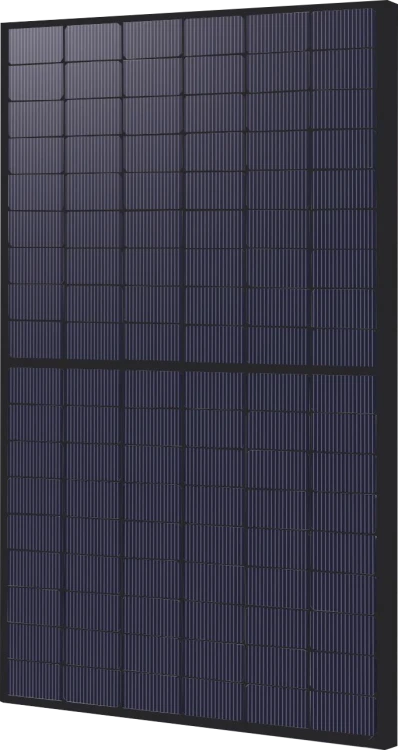

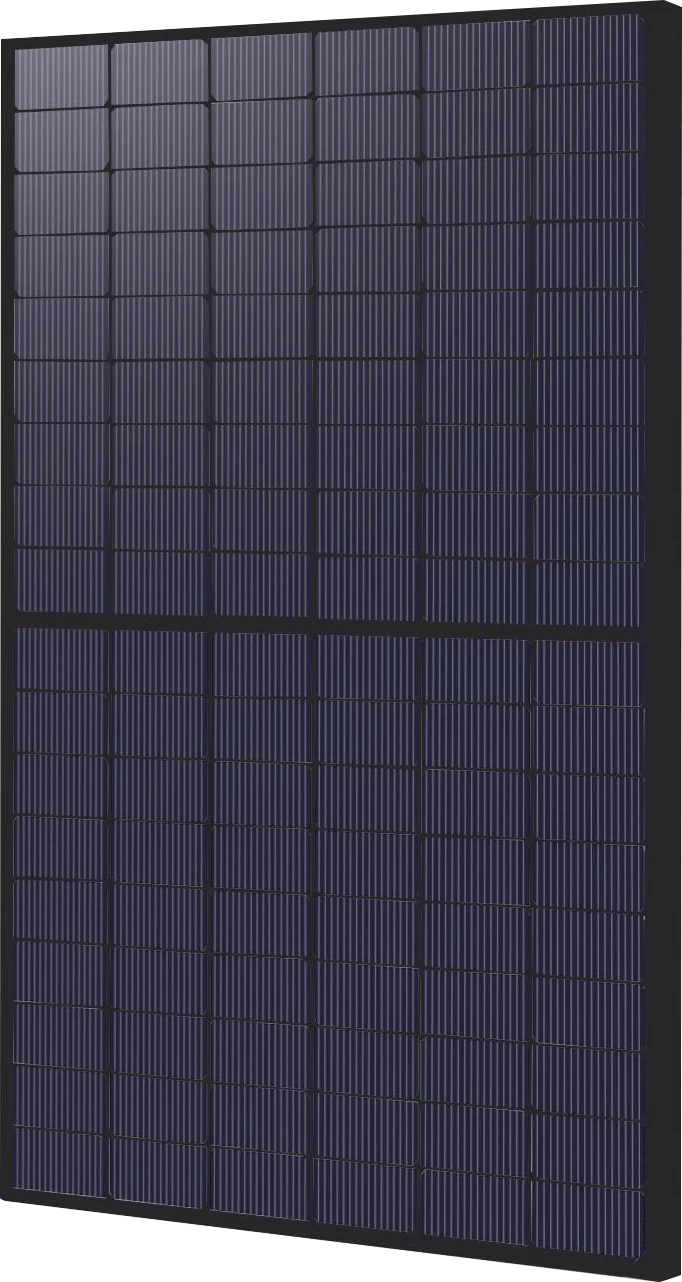

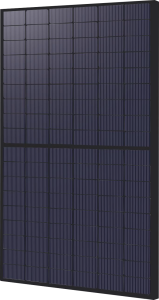

GCL 505W Bifacial Full Black photovoltaic panel
GCL NT12R/54BGDF-505W Full Black Bifacial is a bifacial module with a dual-glass construction and black finish, intended for installations with high aesthetics and efficiency.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5237
Cechy produktu
Panel parameters
- Panel power 500-550 W
- Bifacial Yes
- Frame colour Black
- Full Black Yes
- Sales unit Single unit
- Module height 180-200 cm
- Panel power [W] 505
- Module height [cm] 196.2
Opis
GCL NT12R/54BGDF-505W Full Black Bifacial is a bifacial module with a dual-glass construction and black finish, intended for installations with high aesthetics and efficiency.
GCL develops photovoltaic modules and PV solutions, including bifacial and dual-glass structures, intended for use in commercial and industrial installations.

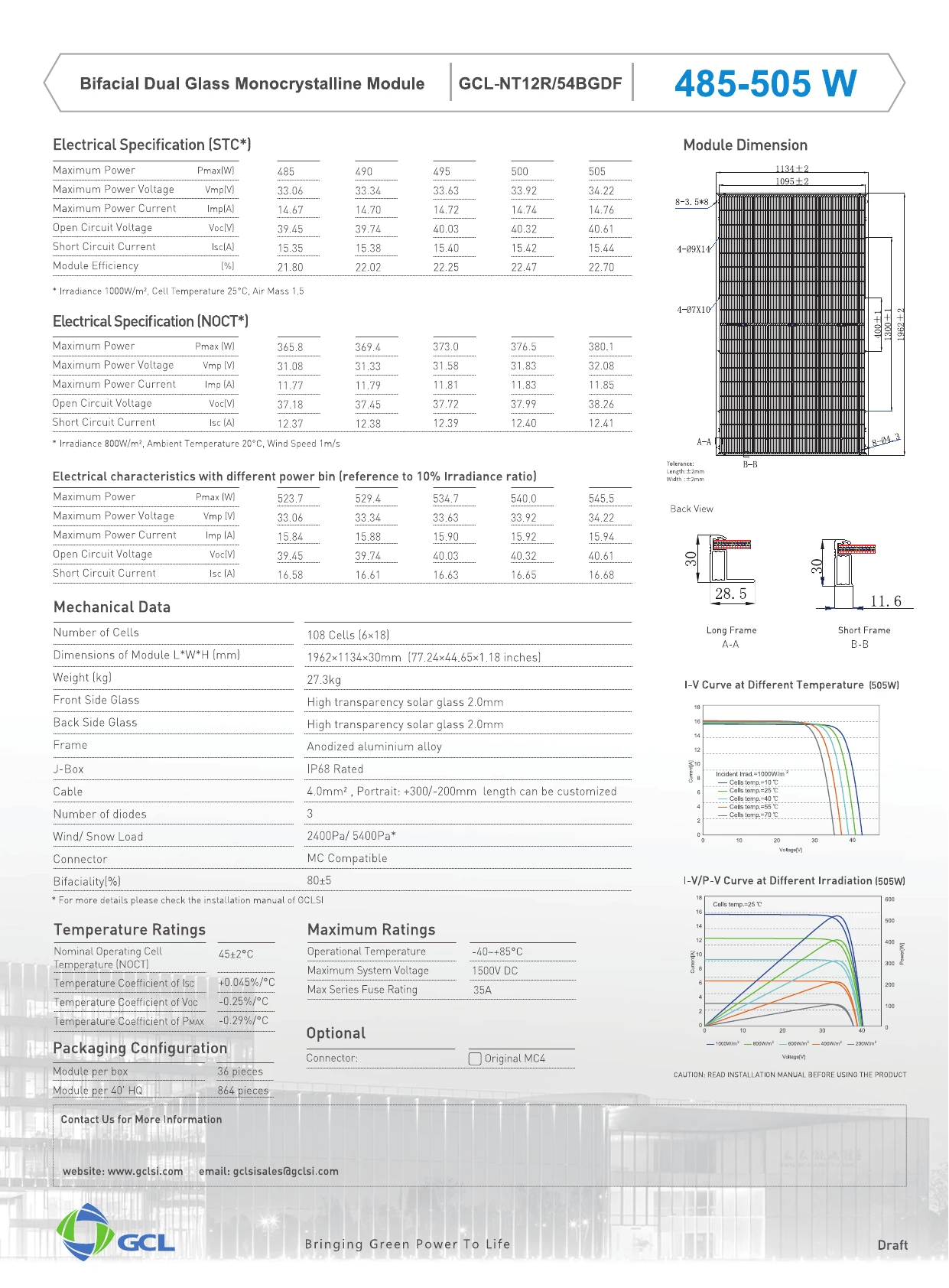

Electrical parameters
- Maximum power Pmax: 505 W
- Open circuit voltage Voc: 40.61V
- Voltage at the maximum power point Vmp: 34.22 V
- Short-circuit current Isc: 15.44 A
- Current at the maximum power point Imp: 14.76 A
- Module efficiency: 22.70%
- Maximum system voltage: 1500 V DC
- Maximum series fuse: 35 A
- Bifaciality: 80±5%
- Temperature coefficient Pmax: -0.29%/°C
Mechanical parameters
- Cells: 108 pcs (6 x 18)
- Dimensions: 1962 x 1134 x 30 mm
- Weight: 27.3 kg
- Glass: 2.0mm + 2.0mm
- Frame: anodized aluminum
- Junction box: IP68
- Cables: 4.0 mm²
- Mechanical load: wind 2400 Pa, snow 5400 Pa
- Packing: 36 pieces per package
