Hermetic AC Connection Distribution Board IP65 EMITER with AC Surge Protector Noark type 2, 32A 3-F, RCD type A 40A\/300mA
Product code: ME6859
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description

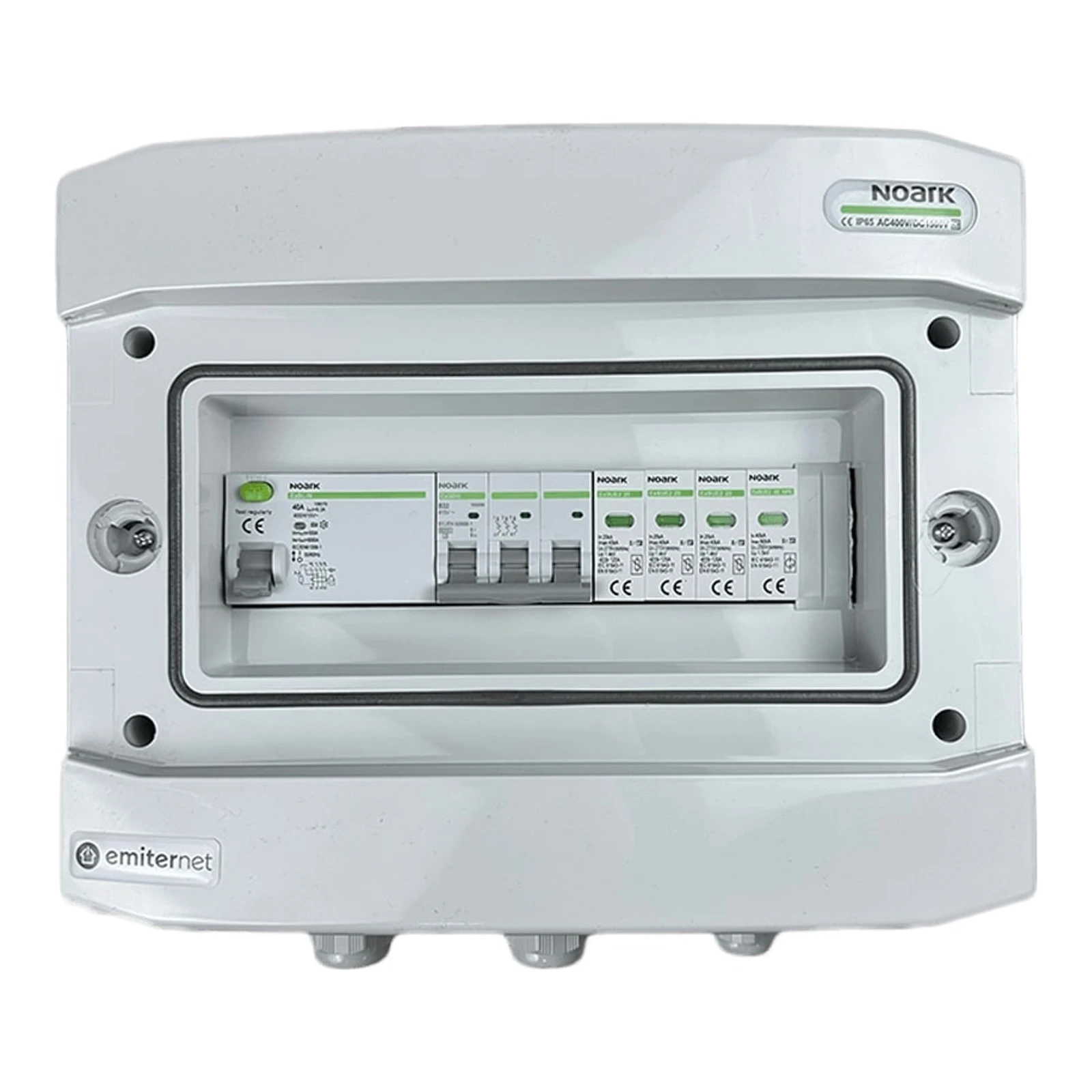

AC Connection Distribution Board EM-299N_AC is a hermetic distribution board designed for photovoltaic installations, equipped with an AC surge protector and protective devices. The model is designed for three-phase AC installations with a main protection of 32 A, providing protection against surges and the presence of a type A residual current device for increased safety.
Component manufacturer: Noark — in the offered version, branded Noark elements (surge protectors/circuit breakers) are used according to the catalogue description, mounted in a prefabricated enclosure compliant with KENO standards.
Electrical Parameters
- Type of surge protector (AC): Noark type 2
- AC protection current: 32 A, 3-phase (3-F)
- Overcurrent breaker: Noark B 32A 3F
- Residual current device: 1 x 40A type A with sensitivity 300 mA (RCD type A 40A/300mA)
- Rated insulation voltage: 400 V AC, 1500 V DC
- Protection class: II
- Standard warranty: 5 years
Mechanical Parameters
- Protection degree: IP65 (hermetic enclosure)
- UV resistance: Yes
- Impact resistance: IK08 (STANDARD series)
- Enclosure material: halogen-free plastic (STANDARD series)
- Operating temperature: -25°C … +60°C (STANDARD series)
