Hermetic Connection Box with DC Surge Protector, 1000V, Type 2, 1x PV String, 1x MPPT SH-1 DC
Product code: ME6823
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description

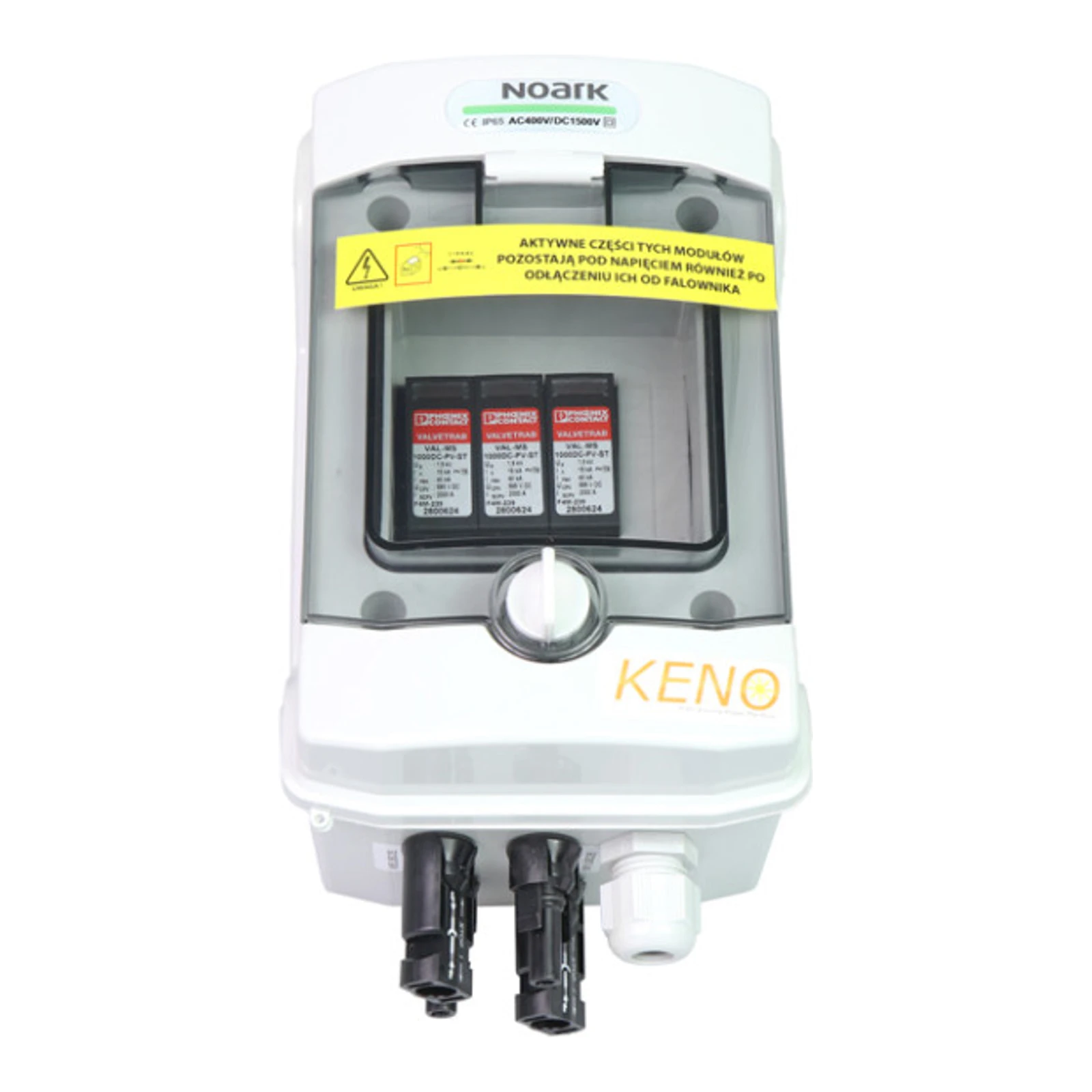

The hermetic SH-1 DC connection box is designed for photovoltaic installations, equipped with a Type 2 DC surge protector. The product is intended for surface mounting and supports one string of modules on one MPPT; ready for connection, modular design with MC4 terminal connections and transparent doors.
Manufacturer: KENO Sp. z o.o. (Gliwice). The data sheet specifies the DC surge protector used from the manufacturer PHOENIX (model VAL-MS 1000DC-PV/2+V). The document contains detailed electrical parameters of the applied surge protector and housing parameters.
Electrical and Protective Parameters
- Surge Protector Type: Type 2 (PHOENIX VAL-MS 1000DC-PV/2+V)
- Maximum Continuous Voltage UCPV: 1170 V DC
- Insulation Resistance Riso: <= 5 GΩ (at 500 V DC)
- Rated Load Current IL: 80 A
- Short-Circuit Resistance I SCPV: 2000 A
- Long-Term Operating Current ICPV: <20 μA
- Protective Conductor Current IPE: <=20 μA DC / <=250 μA AC
- Power Consumption in Standby PC: <=25 mVA
- Rated Discharge Current (8/20) us: 15 kA; Max Discharge Current Imax (8/20) us: 40 kA; Total Discharge Current Itotal (8/20) us: 40 kA
- Protection Level Up / Residual Voltage Ures: <= 3.7 kV (at In); detailed values: <=3.1 kV (at 5 kA), <=3.5 kV (at 10 kA), <=4 kV (at 20 kA), <=4.6 kV (at 30 kA), <=5 kV (at 40 kA)
- Response Time tA: <= 25 ns
- Rated Insulation Voltage (Ui) of Housing: 400 V AC, 1500 V DC
Mechanical and Structural Parameters
- Housing Model: PHS 4T
- Number of Modules: 4 (1 x module string for 1 MPPT)
- Protection Degree: IP65
- Protection Class: II
- Glow Wire Test: 650 °C
- Impact Resistance: IK08
- UV Resistance: YES
- Material: halogen-free plastic suitable for recycling
- Equipment: transparent doors, MC4 terminal connections, modular design, ready for connection
