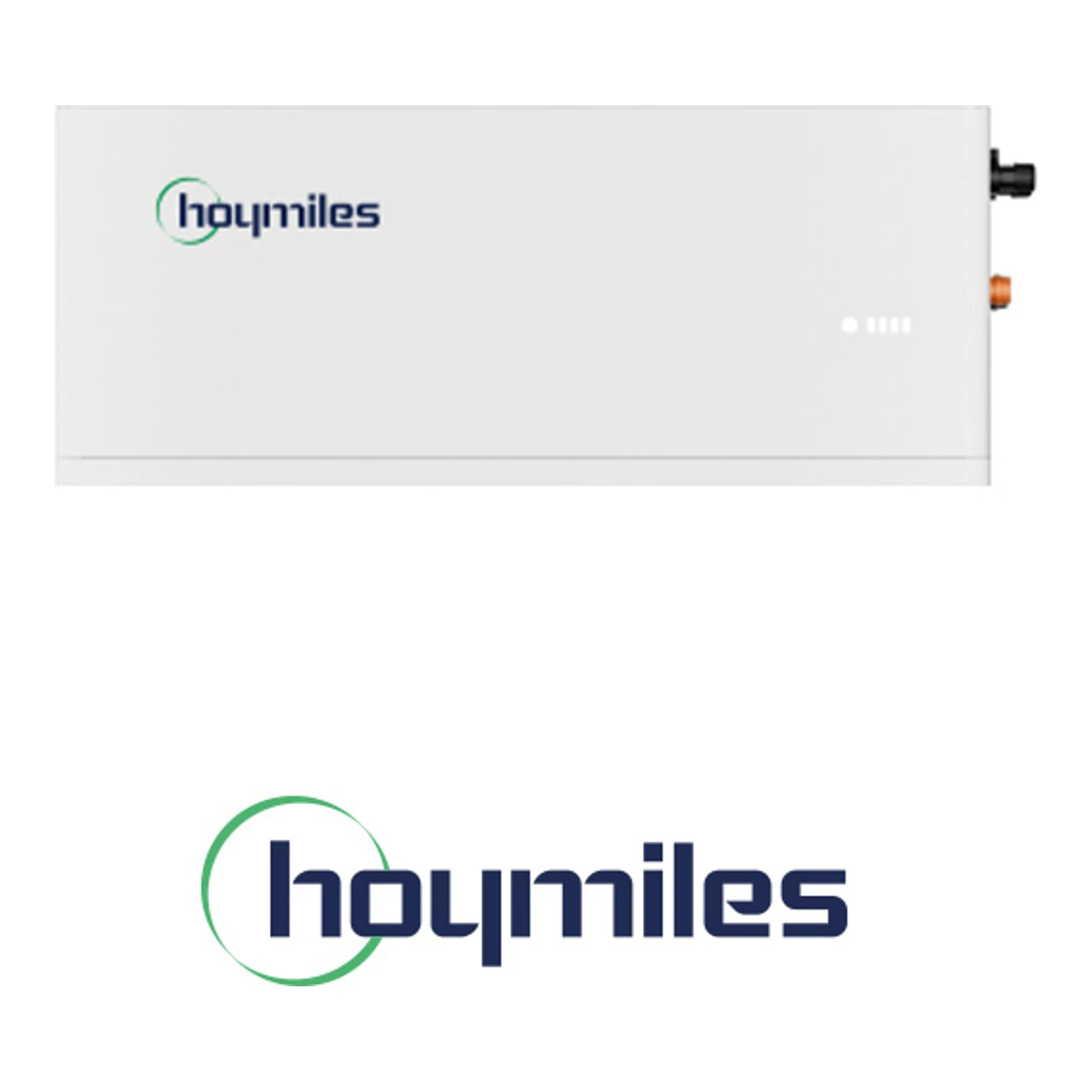

Energy Storage — Control Module LB-10C-G2 (for LB-5S-G2 system)
The control module is designed to work with the series of low-voltage Hoymiles batteries LB-(5-20)S-G2. It serves as the control unit of the BESS system, responsible for communication, battery state management, and safe starting and stopping of the set.
Manufacturer: Hoymiles Power Electronics Inc. — an international supplier of energy storage solutions and electronics for photovoltaic systems. Technical documentation and service information come from the manufacturer Hoymiles and pertain to the modules used in the LB-(5-20)S-G2 series.
Electrical and Functional Parameters
- Communication purpose: COM interfaces (COM1, COM2) described in the series documentation (RJ45 / CAN / RS485 available for integration).
- Supported protocols: CAN, RS485 (according to communication of LB-(5-20)S-G2 batteries).
- Control functions: battery on/off (POWER button), self-diagnosis, BMS software updates.
- Safety recommendations: installation and use of a circuit breaker on the inverter side according to local regulations.
- Maximum allowable system current: in accordance with battery modules — up to 200 A max. continuous charging/discharging for tower modules.
Mechanical Parameters
- Controller dimensions (Control box): 640 × 240 × 145 mm (W × H × D) — dimension specified in the series documentation.
- Controller weight: 11 kg (weight of the Control box unit specified in documentation).
- Mounting: structure designed to work with battery modules of the LB-(5-20)S-G2 series; supplied mounting elements: bracket A and screws according to the packaging list.
- Protection degree and cooling: system elements designed for operation in an environment with natural convection; the entire system achieves IP66 class (referring to the entire set).
- Operating environment: indoor/outdoor installation with a recommended operating temperature range for batteries and components of 0°C to +50°C during charging and -20°C to +50°C during discharging.
