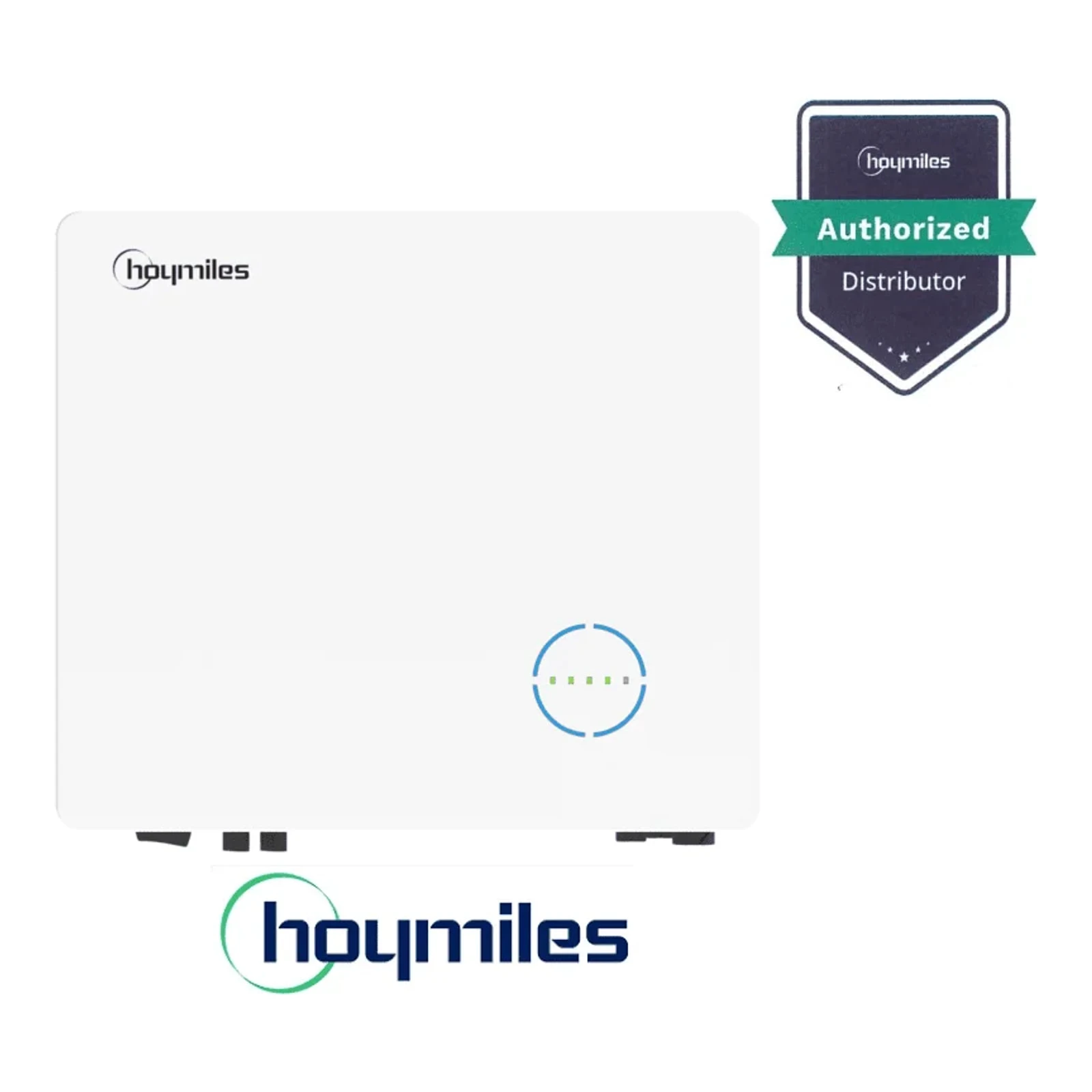

Hoymiles HAT-8.0HV-EUG1 3-phase inverter
Product code: ME7086
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description
The Hoymiles HAT-8.0HV-EUG1 AC-coupled inverter is a three-phase device designed for upgrading photovoltaic installations with a rated power of 8 kW, designed to work with existing PV inverters, creating a grid-tied system and enabling energy management and EMS operating modes.
The manufacturer is Hoymiles Power Electronics Inc., a company providing PV and energy storage solutions that meet international safety and grid standards. Hoymiles also offers remote monitoring and integration with BMS systems, providing support for installers and end-users.
Electrical parameters
- Battery type: lithium-ion
- Nominal battery voltage: 500 V
- Battery voltage range: 170–600 V
- Max. charging/discharging current: 30 A / 30 A
- Max. power (output/battery): 8000 W
- Rated apparent output power (grid connected): 8000 VA
- Max. apparent output power (grid connected): 8800 VA
- Rated AC voltage: 400/380 V, 3L/N/PE
- Rated frequency: 50/60 Hz
- Max. output current: 13.3 A (at rated power)
- Max. input current: 24.2 A
- Max. efficiency: 97.5%
- Peak apparent output power (grid off output): 16000 VA (10 s)
Mechanical and environmental parameters
- Dimensions (W × H × D): 502 × 486 × 202 mm
- Weight: 23 kg
- Mounting: wall-mounted
- Protection class: IP65
- Cooling: natural convection
- Noise level: <40 dB(A)
- Operating temperature: from -25 to +65 °C (above 45 °C derating)
- Relative humidity: 0–95%, non-condensing
- Altitude: <2000 m
- Communication interfaces / I/O: RS485, CAN; optionally Wi‑Fi/Ethernet/4G; DRM, 1×DI, 2×DO
