Hybrid Inverter Solplanet // ASW029.9K-TH Aiswei ASW029.9K-TH_AFCI
Product code: ME7322
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description

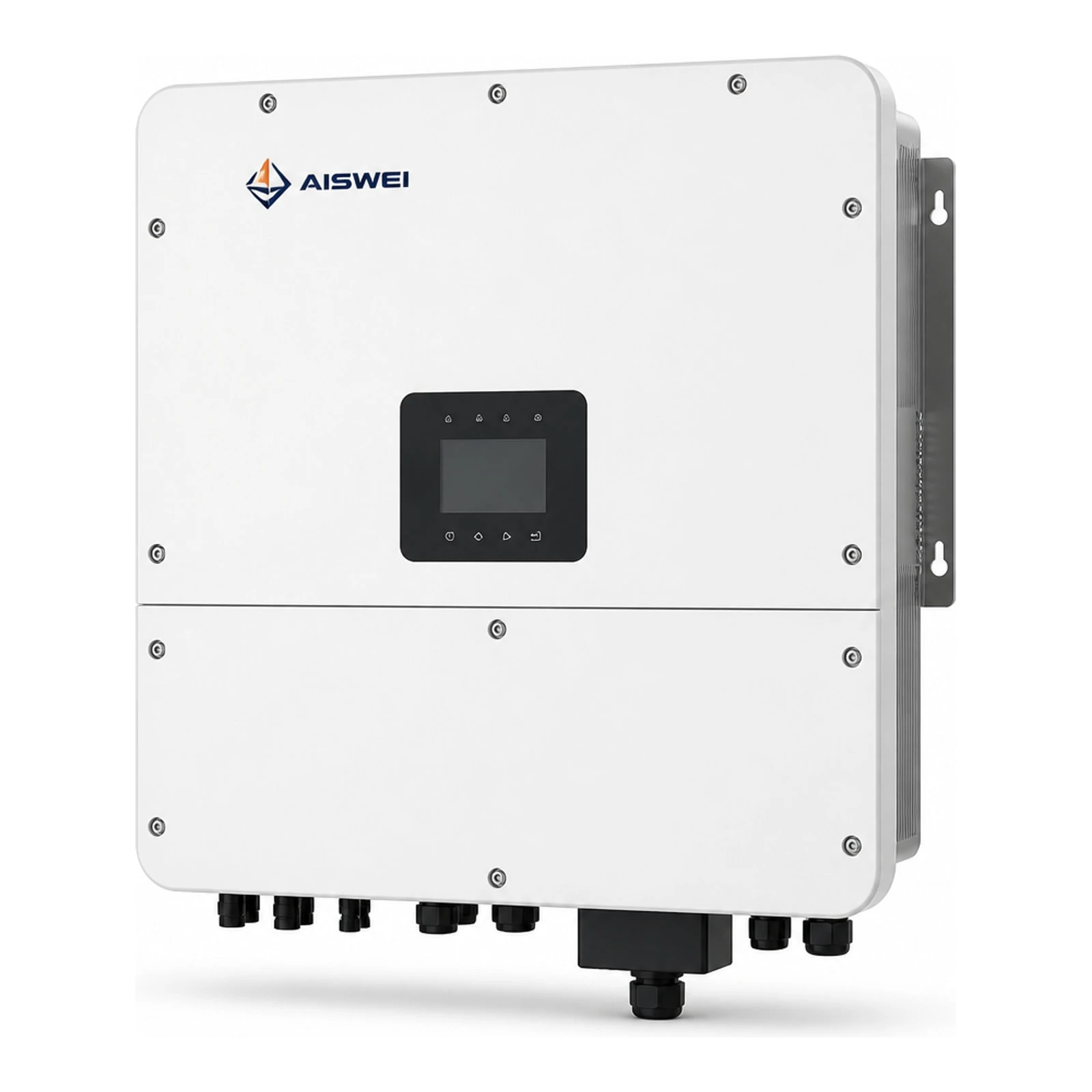

The Aiswei ASW029.9K-TH hybrid inverter is a three-phase inverter with a nominal power of 29.9 kW designed for use with photovoltaic systems and high-voltage batteries. The device offers UPS functions with a switching time of less than 10 ms, supports up to 4 MPPTs, and allows the connection of two independent battery inputs, making it suitable for large residential and commercial installations.
Manufacturer Information
The manufacturer of the device is Aiswei (Solplanet brand), specializing in three-phase hybrid inverters. Devices in this series offer advanced management of LiFePO4 batteries, LAN/WiFi/RS485 communication, and safety features such as string-level current monitoring and Type II surge protection.
Electrical Parameters
- Maximum PV array power: 59800 Wp
- Nominal AC power (rated apparent power): 29900 VA
- Max. continuous EPS power (on-grid/off-grid @400 V): 32890 VA
- Max. input voltage (V): 1000 V
- MPPT range / nominal voltage: 150 V to 950 V / 630 V
- Number of independent MPPTs / strings per MPPT: 4 MPPTs / 2 strings per MPPT
- Max. input current per MPPT / power per MPPT: 40 A / 25000 W
- Battery voltage range: 120 V to 800 V
- Max. charging power from PV and AC: 59800 W
- Max. charging / discharging current: 100 A
- Nominal AC grid voltage: 3/N/PE, 230 V / 400 V (also supports 220 V/380 V and 240 V/415 V)
- Max. input current from the grid: 72.5 A
- Harmonics THDi: < 3 %
- MPPT efficiency: 99.90%
Mechanical and General Parameters
- Dimensions (S / W / G): 769 mm / 491 mm / 285 mm
- Weight: 58.0 kg
- Protection class: IP66 (suitable for indoor and outdoor installation)
- Operating temperature: -30 °C … +60 °C
- Max. relative humidity: 100%
- Max. operating altitude: 4000 m
- Cooling: Smart cooling
- Communication interfaces: Dongle: WiFi (2.4 GHz) / LAN (100 Mbps); Inverter: RS485 (ModBus RTU, Sunspec RTU), LAN (100 Mbps, Modbus TCP only)
- Digital inputs/outputs: Digital output (dry contact) 3 outputs; Digital input (dry contact) 7 inputs
