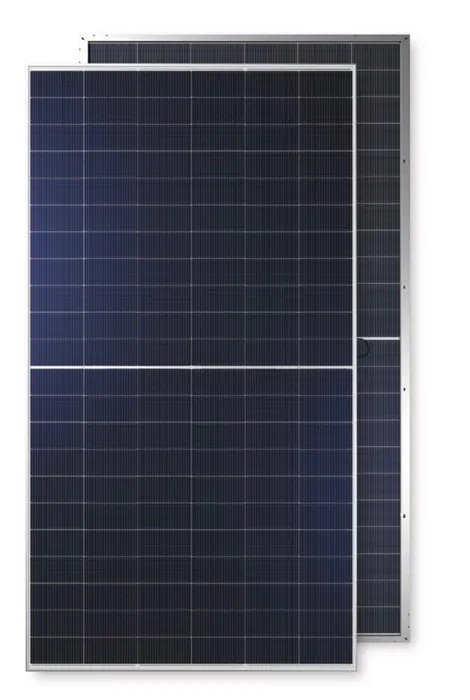

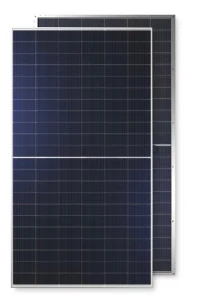

Jetion 705W photovoltaic panel

Jetion 705W HJT Bifacial Dual Glass 1500V Tier 1 Photovoltaic Panel

HJT technology (Heterojunction Technology) is a modern photovoltaic cell technology that combines crystalline silicon (N-type) with thin-film amorphous layers. It is worth paying extra for HJT technology panels because they provide higher energy production for 30 years, lower losses in heat and a real higher profit from each installed kilowatt hour.

Jetion Solar photovoltaic panel model JT705SLk B 700W in HJT N type dual glass technology. Module of 132 high-performance cells for 1500V DC farm installations and commercial projects.

STC technical parameters

• Maximum power Pmax 705 W
• Maximum power voltage Vmp 42.1 V
• Maximum power current Imp 16.63 A
• Open circuit voltage Voc 50.00 V
• Short-circuit current Isc 17.43 A
• Module efficiency 22.5 percent
• Power tolerance 0 to plus 5 W

Mechanical parameters

• Dimensions 2384 x 1303 x 35 mm
• Weight 37.3 kg
• 132 HJT N type 210 mm cells
• Dual glass construction, front and rear glass 2.0 mm
• Silver aluminum frame
• IP68 junction box
• MC4 compatible connectors
• Maximum system voltage 1500 V DC
• Maximum load 5400 Pa front, 2400 Pa rear
• Maximum series fuse 35 A
• Bifaciality 85 percent plus or minus 10 percent

Advantages

• HJT technology very low degradation
• High efficiency up to 23.2 percent in series
• Additional yield on the back side 5 to 30 percent
• Very good operation at high temperatures
• Low temperature coefficient
• High mechanical strength
• IEC ISO Bloomberg Tier 1 certifications
