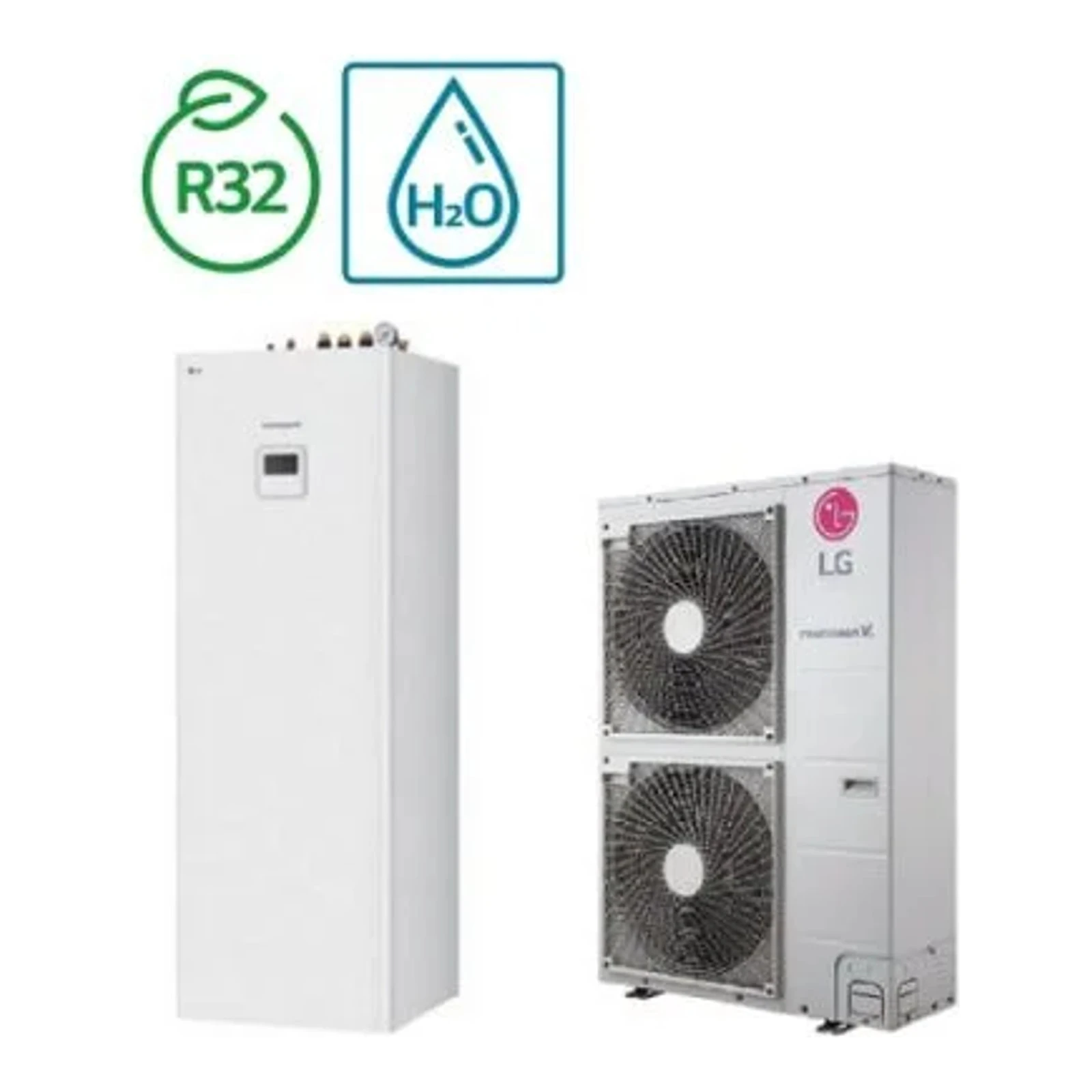

LG Heat Pump Therma V Hydrosplit IWT R32 16kW 3-phase HU163MRB/HN1616Y

LG Therma V Hydrosplit IWT R32 heat pump in 16 kW configuration (external model HU163MRB combined with internal unit HN1616Y) is a split system designed for heating and cooling integrated with a water circuit. The device allows operation with a water outlet temperature of up to 65°C, is designed for three-phase installation, and offers high seasonal efficiency (SCOP 4.55 at LWT 35°C). The pump uses R32 refrigerant with a reduced GWP potential.

The manufacturer of the device is LG, an international company specializing in electronics and heating-cooling systems. LG provides LV/HV solutions with inverter technology and Scroll compressors, combining advanced hydraulic control (built-in flow and pressure sensors, advanced water pump control) with a compact design of external and internal units.

Electrical and Refrigeration Parameters

• Nominal power (heating): 16.00 kW (OAT 7°C, LWT 35°C)
• Power supply type: 380 ~ 415 V, 3~ (50 Hz)
• Nominal power consumption (heating): 3.33 kW
• Nominal operating current (heating): 4.9 A
• Nominal operating current (cooling): 5.9 A
• Recommended protection: 16 A (three-phase)
• Power supply connection (cable): 2.5 mm2 x 5 wires (2.5 x 5C)
• Refrigerant: R32, pre-charge 2,100 g, GWP 675 (1.418 t-CO2 eq)
• COP (heating, 7°C / 35°C): 4.80 W/W
• EER (cooling, 35°C / 18°C): 4.00 W/W

Mechanical and Acoustic Parameters

• Compressor type: hermetic Scroll (1 piece)
• Nominal water flow at LWT 35°C: 46.0 l/min
• Operating range (water outlet temperature): heating: -25 ~ 35 °C (DB); cooling: 5 ~ 48 °C
• Sound power level (heating, nominal): 63 dB(A)
• Sound pressure level at 1 m (heating): 55 dB(A)
• Water circuit pipe connections: external thread 1" (inlet and outlet)
• Dimensions (L x W x D): 950 x 1,380 x 330 mm
• Unit weight: 91.7 kg
• Seasonal efficiency class (heating, LWT 35°C): A+++ (SCOP 4.55)
• Domestic hot water efficiency (EN 16147): profile L, ηwh 120%, class A+
