  • ME5253.png
Longi

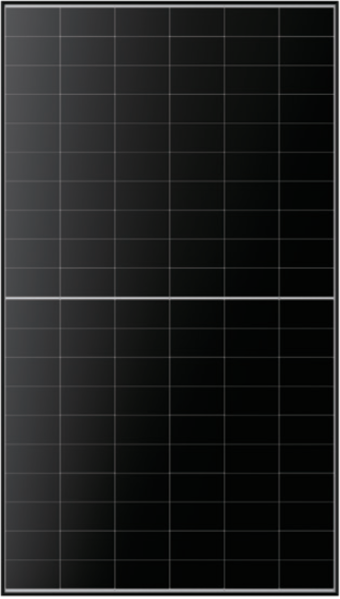

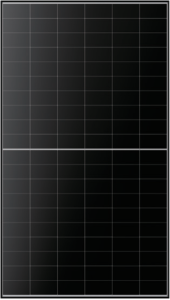

LONGi 525W Hi-MO X10 N-Type Mono Black Frame photovoltaic panel

LONGI 525W Hi-MO X10 photovoltaic module is a modern panel with a transparent design, engineered for high efficiency and aesthetic appearance. Using N-type monocrystalline cells and BC-cell technology ensures excellent energy performance, lower operating temperature and long-term power stability. Ideal for modern rooftop installations and commercial PV systems.

Go to full description
with VAT without VAT
€115.06
incl. 23% VAT
Regular price: €138.07
-17%
The lowest price during 30 days prior to the reduction: €138.07
-17%
The promotion runs until 15 August 2026

Shipping costs are not included in the price.

szt.
Availability:
duża ilość

Similar models

Ask about the product
Shipping time: 48 godzin

Cechy produktu

Panel parameters

  • Panel power 500-550 W
  • Cell type Back Contact
  • Frame colour Black
  • Sales unit Single unit
  • Module height 180-200 cm
  • Panel power [W] 525
  • Module height [cm] 199

Opis

LONGI 525W Hi-MO X10 photovoltaic module is a modern panel with a transparent design, engineered for high efficiency and aesthetic appearance. Using N-type monocrystalline cells and BC-cell technology ensures excellent energy performance, lower operating temperature and long-term power stability. Ideal for modern rooftop installations and commercial PV systems.

LONGi Solar is a global leader in the production of monocrystalline cells and modules, known for innovative solutions in energy efficiency and product durability. The brand focuses on sustainable development, quality, and continuous improvement of PV technology, offering products compliant with IEC and ISO international standards.

Electrical parameters

  • Maximum power (Pmax): 525 W
  • Open circuit voltage (Voc): 44.85 V
  • Short circuit current (Isc): 14.80 A
  • Voltage at maximum power (Vmp): 37.07 V
  • Current at maximum power (Imp): 14.16 A
  • Module efficiency: 23.26%
  • Temperature coefficient Pmax: -0.26%/°C
  • Temperature coefficient Voc: -0.20%/°C
  • Nominal operating cell temperature (NOCT): 45±2°C
  • Maximum system voltage: 1500 V DC (IEC)

Mechanical parameters

  • Dimensions: 1990 × 1134 × 30 mm
  • Weight: 28 kg
  • Frame: anodised black aluminium
  • Glass: double, 2.0 mm semi-tempered (front and back)
  • Connectors: EVO2, 4 mm² cable, length approx. 1400 mm
  • Junction box: IP68
  • Cell configuration: 120 (6×20)
  • Load resistance: 5400 Pa (front) / 2400 Pa (rear)
  • Operating temperature: -40°C ~ +85°C
  • Packaging: 36 pcs/pallet, 180 pcs/20’GP, 792 pcs/40’HC
