Longi

LONGi 535W Hi-MO X10 N-type black frame photovoltaic panel

€100.94

Regular price: €121.13

-17%

The lowest price during 30 days prior to the reduction: €132.42

-24%

The promotion runs until 15 August 2026

Shipping costs are not included in the price.

Quantity

szt.

Availability:

duża ilość

Ask about the product

Shipping time: 48 godzin

Panel parameters

Panel power 500-550 W
Cell type Back Contact
Frame colour Black
Sales unit Single unit
Module height 180-200 cm
Panel power [W] 535
Module height [cm] 199

Opis

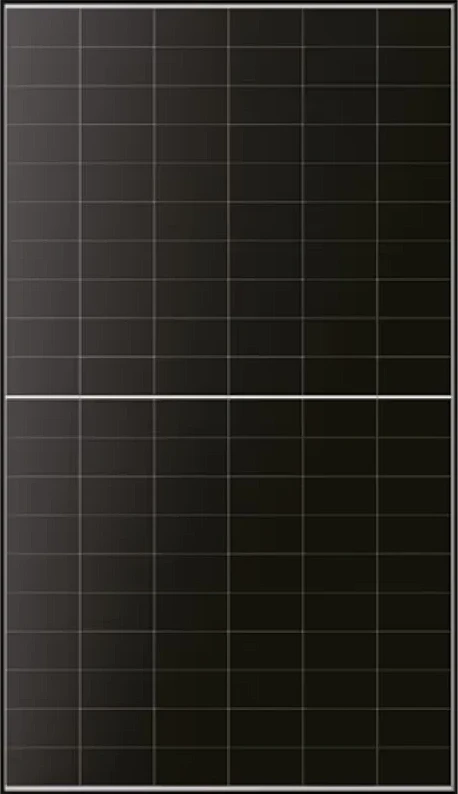

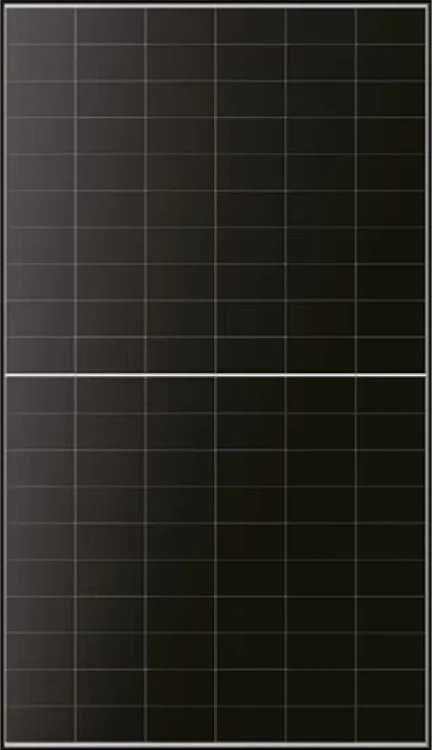

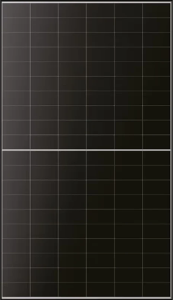

LONGi photovoltaic panel 535W Hi-MO X10 N-type black frame

The LONGi 535W LR7-60HVH-535M photovoltaic panel is a modern module from the Hi-MO X10 series, made using N-type HPBC 2.0 technology. It is intended for home, commercial and larger photovoltaic systems. BC-cell technology ensures high efficiency, aesthetic appearance of the module and very good operation in various sunlight conditions.

The panel is characterized by high efficiency, low power degradation and an anti-shading function that supports stable energy production in partial shade. The black frame made of an anodized aluminum alloy gives the module a modern look and works well on roofs where the aesthetics of the installation are important.

⸻

Key features:
• Nominal power 535W
• LONGi Hi-MO X10 series
• N-type technology
• HPBC 2.0 / BC-cell technology
• Monocrystalline photovoltaic module
• 30mm black aluminum frame
• 1400 mm cable
• EVO2 connector
• High module efficiency: 23.7%
• Anti-shading function for better operation in partial shade
• Low power degradation over time
• First year relegation: 1%
• Annual degradation in years 2–30: 0.35%
• High mechanical resistance
• Front static load: 5400 Pa
• Rear static load: 2400 Pa
• Designed for roof and ground installations

⸻

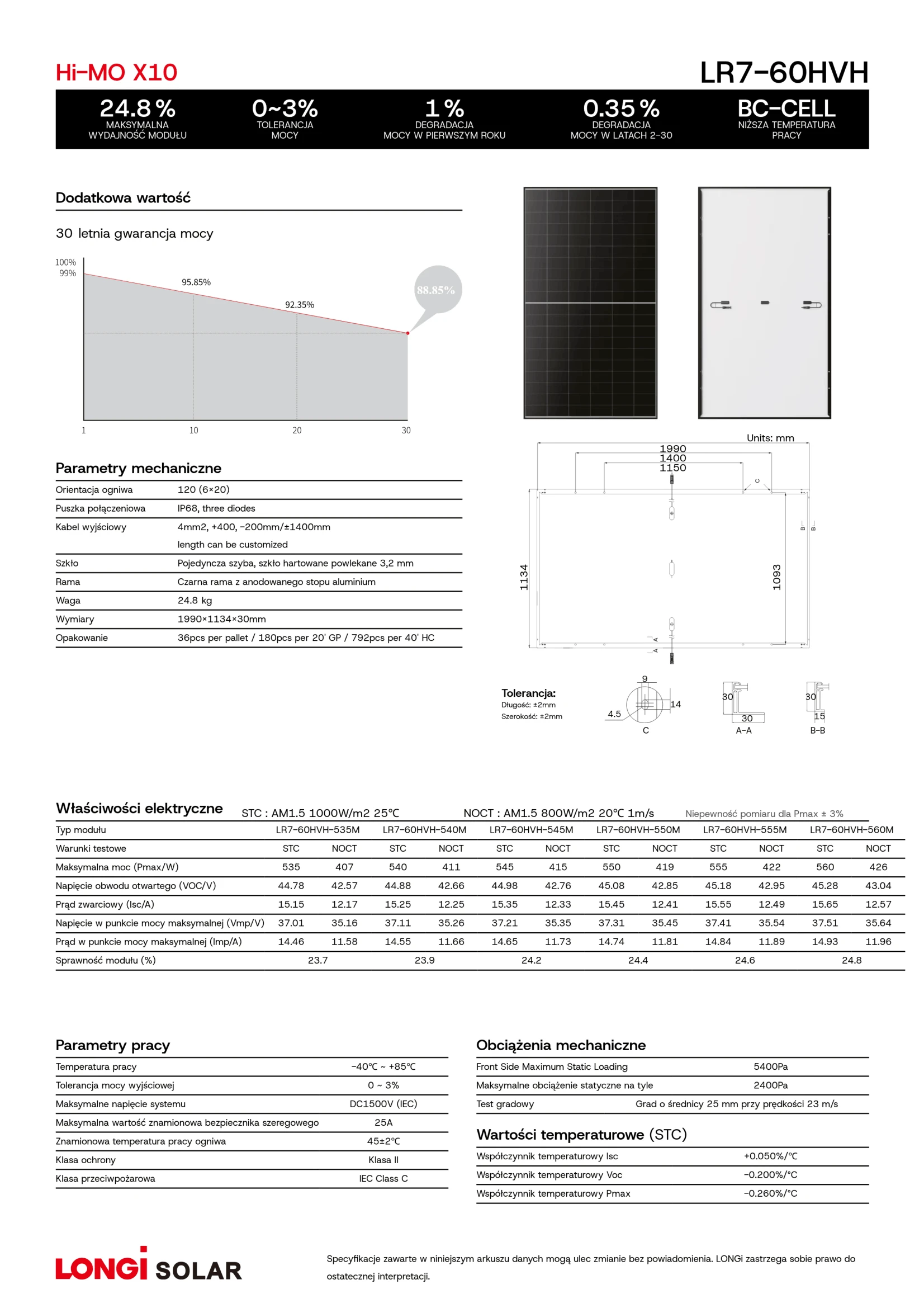

Technical data:
• Model: LR7-60HVH-535M
• Maximum power Pmax: 535W
• Open circuit voltage Voc: 44.78 V
• Short-circuit current Isc: 15.15 A
• Voltage at the maximum power point Vmp: 37.01 V
• Current at the maximum power point Imp: 14.46 A
• Module efficiency: 23.7%
• Cell type: monocrystalline, N-type
• Cell orientation: 120 [6 × 20]
• Glass: Single pane, 3.2mm coated tempered glass
• Frame: Black anodized aluminum alloy frame
• Dimensions: 1990 × 1134 × 30 mm
• Weight: 24.8 kg
• Maximum system voltage: DC 1500 V
• Maximum series fuse: 25 A
• Power tolerance: 0~+3%
• Junction box: IP68, 3 diodes
• Output cable: 4 mm²
• Cable length: ±1400 mm
• Connector: EVO2
• Protection class: Class II
• Fire rating: IEC Class C
• Pallet configuration: 36 pieces/pallet
