Longi

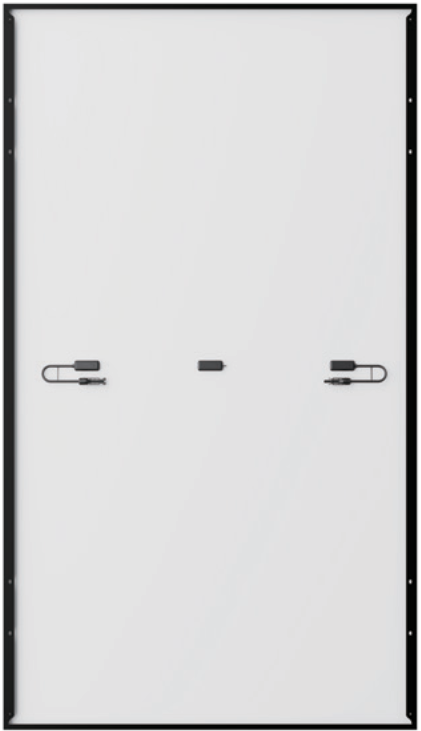

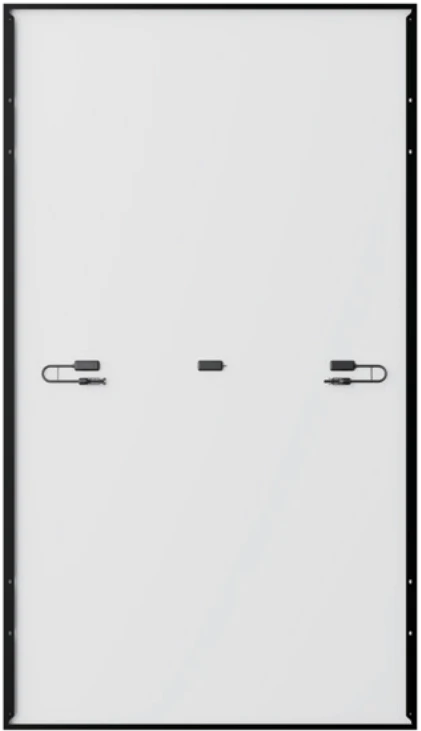

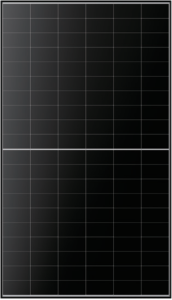

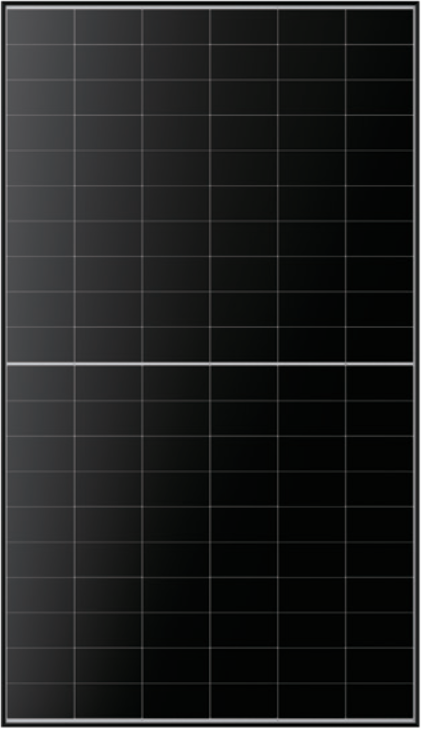

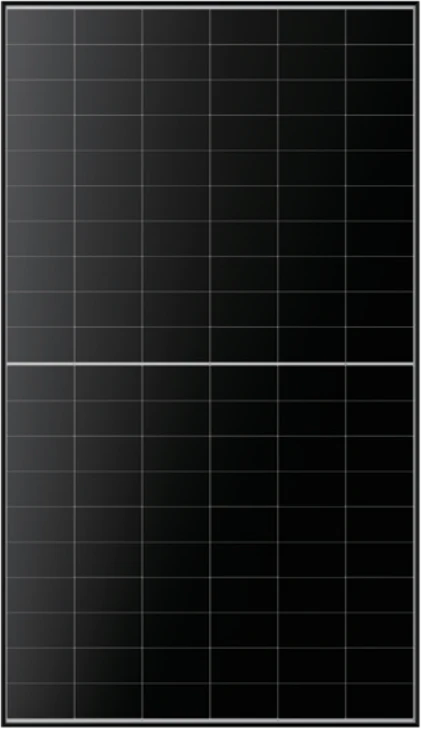

LONGi 540W Hi-MO X10 Mono Black Frame photovoltaic panel

The LONGI Hi-MO X10 540W photovoltaic module is a modern monocrystalline panel based on HPBC 2.0 technology with N-type cells, providing high efficiency and long-lasting reliability. Featuring an innovative design and a 30 mm black frame, it is an ideal solution for rooftop and ground-mounted installations, delivering excellent performance in various operating conditions.

Go to full description
with VAT without VAT
€96.24
incl. 23% VAT
Regular price: €115.48
-17%
The lowest price during 30 days prior to the reduction: €135.25
-29%
The promotion runs until 15 August 2026

Shipping costs are not included in the price.

szt.
Availability:
duża ilość
Ask about the product
Shipping time: 48 godzin

Cechy produktu

Panel parameters

  • Panel power 500-550 W
  • Cell type Back Contact
  • Frame colour Black
  • Sales unit Single unit
  • Module height 180-200 cm
  • Panel power [W] 540
  • Module height [cm] 199

Opis

The LONGI Hi-MO X10 540W photovoltaic module is a modern monocrystalline panel based on HPBC 2.0 technology with N-type cells, providing high efficiency and long-lasting reliability. Featuring an innovative design and a 30 mm black frame, it is an ideal solution for rooftop and ground-mounted installations, offering excellent performance in diverse conditions.

LONGi Solar is a global leader in manufacturing high-performance photovoltaic modules and silicon technologies. The company is known for innovative solutions, quality stability, and consistent implementation of sustainable energy technologies worldwide.

Electrical parameters

  • Maximum power (Pmax): 540 W
  • Open-circuit voltage (Voc): 44.88 V
  • Short-circuit current (Isc): 15.25 A
  • Voltage at maximum power (Vmp): 37.11 V
  • Current at maximum power (Imp): 14.55 A
  • Module efficiency: 23.71%
  • Power tolerance: 0 ~ +3%
  • Maximum system voltage: DC 1500 V (IEC)
  • Nominal operating cell temperature (NOCT): 45 ± 2°C
  • Series fuse: 25 A

Mechanical parameters

  • Dimensions: 1990 × 1134 × 30 mm
  • Weight: 24.5 kg
  • Glass: 3.2 mm tempered glass with anti-reflective coating
  • Frame: anodized aluminium
  • Junction box: IP68, three bypass diodes
  • Cables: 4 mm², length ±1400 mm, EVO2 connector
  • Cell layout: 120 (6×20)
  • Maximum static load (front): 5400 Pa
  • Maximum static load (rear): 2400 Pa
  • Packaging: 36 pcs per pallet / 180 pcs in 20’GP / 792 pcs in 40’HC
