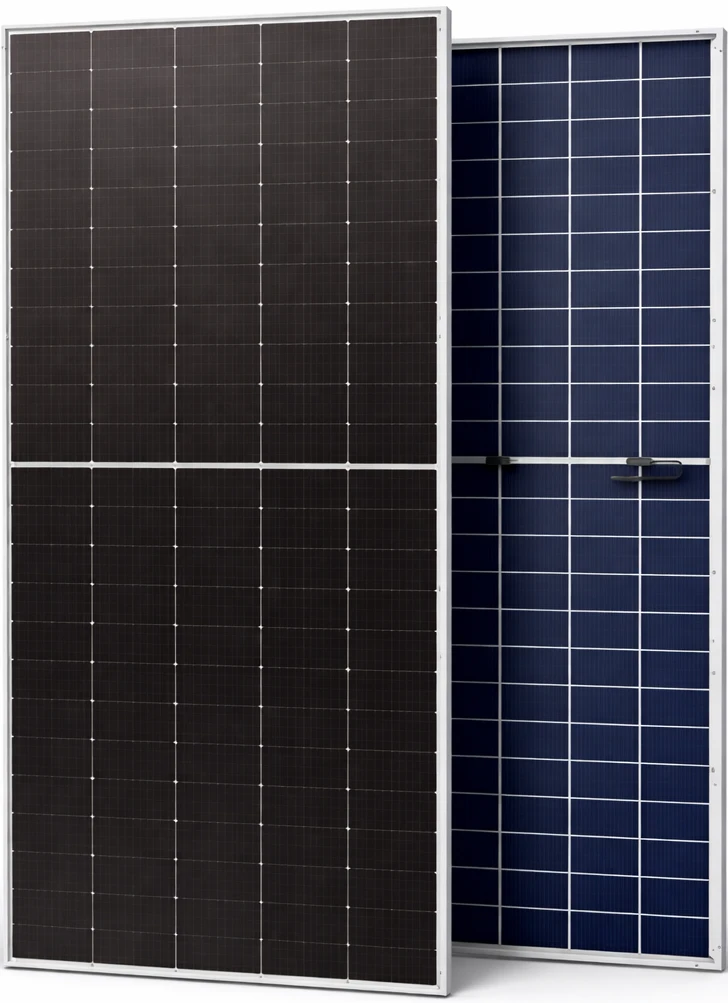

LONGi photovoltaic panel 615W Half-Cut Bifacial Glass-Glass Mono Silver
Product code: ME0464_GB
Bifacial LONGi Hi-MO 7 LR8-66HGD-615M photovoltaic panel with a rated power of 615 W and efficiency 22,8%. HPDC cells, glass-glass construction and silver aluminium frame.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product features
Panel parameters
- Panel power 600-650 W
- Cell type PERC
- Efficiency over 23%
- Bifacial Yes
- Glass-glass Yes
- Frame colour Silver
- Sales unit Single unit
- Module height over 200 cm
- Weight over 30 kg
- Panel power [W] 615
- Module height [cm] 238.2
- Number of cells 132
- Dimensions 2382 x 1134 x 30 mm
- Operating voltage and current (Vmp/Imp) 40,91 V / 15,16 A
- Connector type MC4-compatible
- Temperature coefficient 0,280 % / °C
Description
LONGi Hi-MO 7 LR8-66HGD-615M is a bifacial photovoltaic module with a rated power of 615 W under STC conditions. It uses HPDC cells in a half-cut configuration and a glass-glass construction with a silver anodised aluminium alloy frame.
The module can generate energy from both the front and the rear. Bifaciality is 80 ±5%; the actual additional yield depends on installation conditions and ground-reflected irradiance.
Key features
- Model LR8-66HGD-615M from the Hi-MO 7 series
- Rated power 615 W under STC conditions
- Module efficiency 22,8%
- 132 half-cut cells in a 6×22 layout
- HPDC cell technology
- Bifacial glass-glass construction, glass 2,0 + 2,0 mm
- Dimensions 2382 × 1134 × 30 mm
- Junction box IP68 with three diodes
Electrical parameters STC
| Parameter | Value |
|---|---|
| Maximum power Pmax | 615 W |
| Open-circuit voltage Voc | 48,58 V |
| Short-circuit current Isc | 16,00 A |
| Maximum power voltage Vmp | 40,71 V |
| Maximum power current Imp | 15,11 A |
| Module efficiency | 22,8% |
| Power tolerance | 0 to +3% |
Conditions STC: AM1.5, irradiance 1000 W/m², cell temperature 25°C.
Operating parameters and durability
- Maximum system voltage 1500 V DC
- Maximum series fuse rating 35 A
- Protection class II
- Operating temperature from -40 to +85°C
- Nominal cell temperature NOCT 45 ±2°C
- Temperature coefficient of Pmax -0,280%/°C
- Temperature coefficient of Voc -0,230%/°C
- Temperature coefficient of Isc +0,045%/°C
- Maximum static load front 5400 Pa, rear 2400 Pa
Manufacturer warranty
The manufacturer datasheet for this module family specifies 12 years warranty on materials and workmanship and 30 years linear power warranty. Power degradation in the first year is below 1%, and in years 2–30 a maximum of 0,4% per year. Detailed terms are set out in the manufacturer's warranty document.
