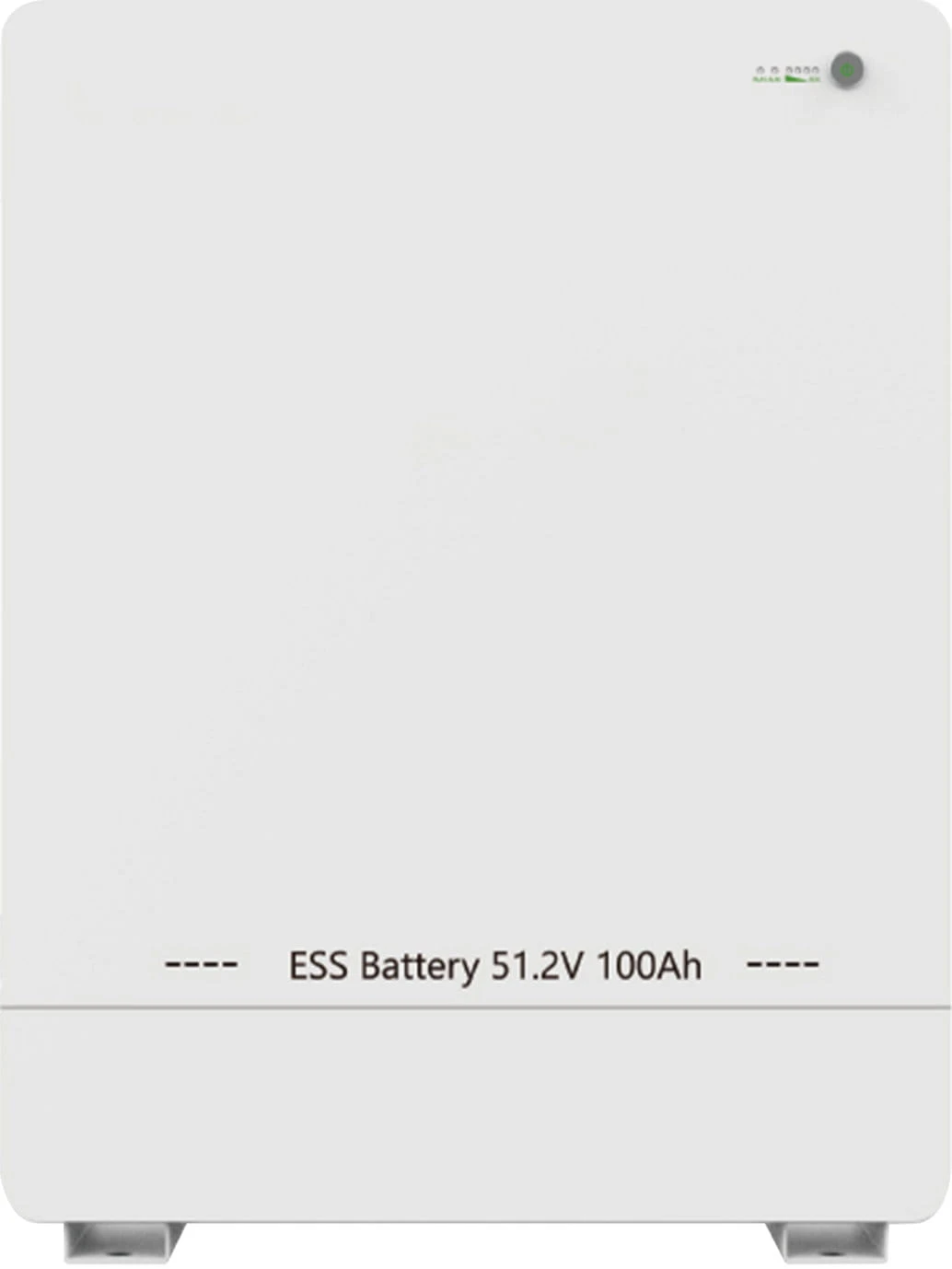

LV DAH Solar energy storage 5.12 kWh DH-A05

DAH Solar DH A05 battery 5.12 kWh LiFePO4 51.2V. New low-voltage model, standing or hanging. Great promotion. Order today, collect and pay at the end of January.

The subject of sale is a low-voltage DAH Solar DH A05 battery with a capacity of 5.12 kWh, made using safe and durable LiFePO4 technology.
The model operates at a voltage of 51.2V and is ideal for on-grid, off-grid and hybrid photovoltaic installations.
The battery works with most LV inverters, including Deye, SMA, Victron, SE, Solis, GoodWe, Growatt, LuxPowerTek, Senergy, SRD and others.

The module is characterized by long service life, high operational stability at low and high temperatures and high current efficiency.
According to the product card, the battery retains approximately 90 percent of its capacity at temperatures of minus 20 degrees Celsius and operates stably in the range of minus 40 to plus 65 degrees Celsius.

⸻

The most important features of the DH A05 battery

Energy capacity 5.12 kWh 5376 Wh
Nominal voltage 51.2V
Nominal capacity 100Ah
Lifespan of over 4,000 cycles at 80 percent capacity
Stable operation at temperatures from minus 40 to plus 65 degrees
Maintaining approximately 90 percent of capacity at minus 20 degrees
Safe LiFePO4 chemistry with high thermal stability
High efficiency at heavy loads
Support 2C fast charge and discharge
Low weight and compact design
Cooperation with many LV inverters
Recommended topping up every two months to 60 to 80 percent

⸻

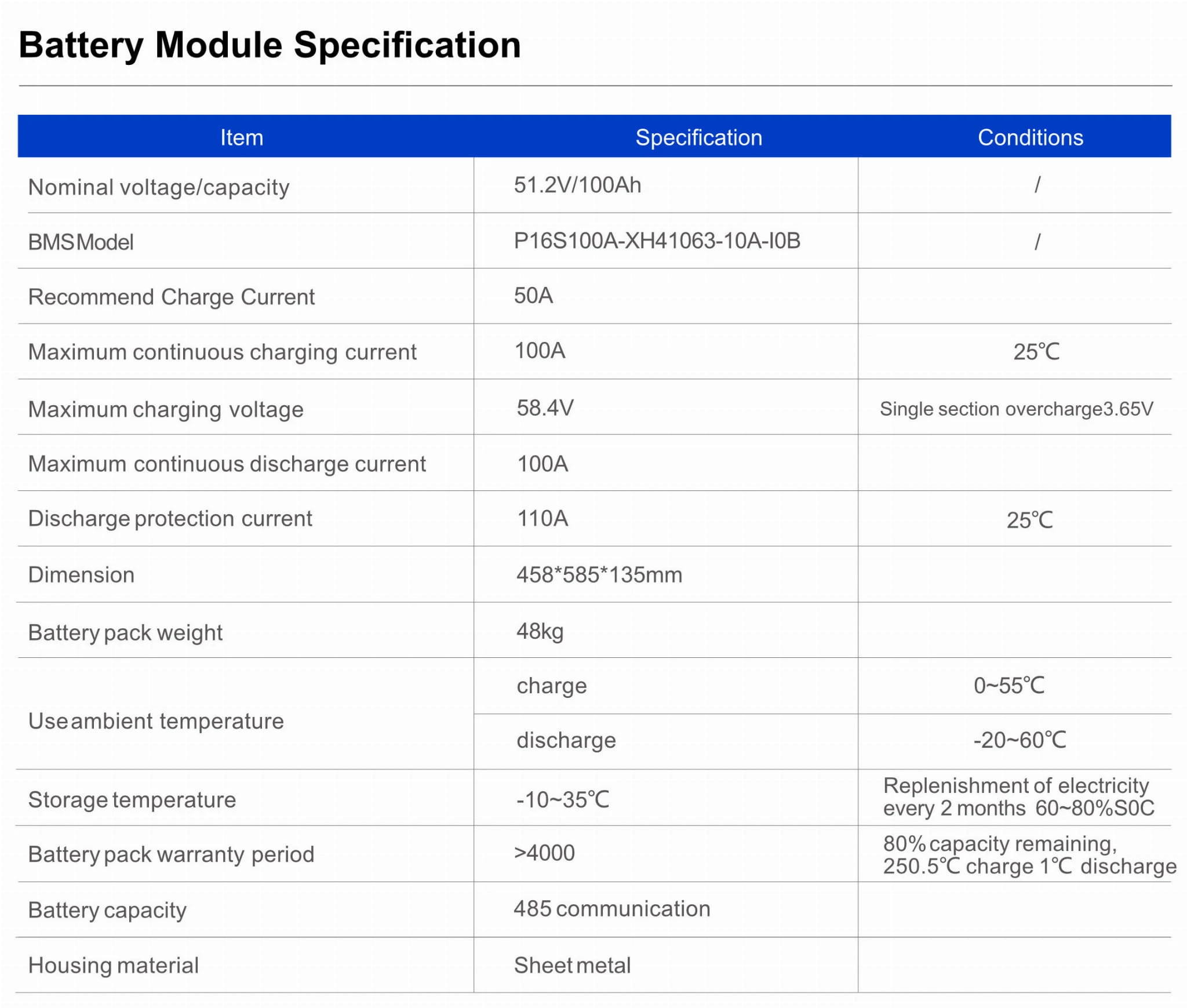

Technical parameters of DH A05

Nominal voltage 51.2V
Nominal capacity 100Ah
Recommended charging current 50A
Maximum charging current 100A
Maximum discharge current 100A
Discharge protection current 110A
Maximum charging voltage 58.4V
RS485 communication
Housing material: sheet steel
Dimensions 458 x 585 x 135 mm
Weight approximately 48 kg
Lifespan over 4000 cycles
Operating temperature charging from 0 to 55 degrees
Operating temperature discharge from minus 20 to 60 degrees
Storage temperature from minus 10 to 35 degrees

⸻

Application

Photovoltaic systems on grid
Off grid systems for homes and companies
Hybrid installations
UPS and critical installations
48V home energy storage
Integration with LV low voltage inverters

⸻

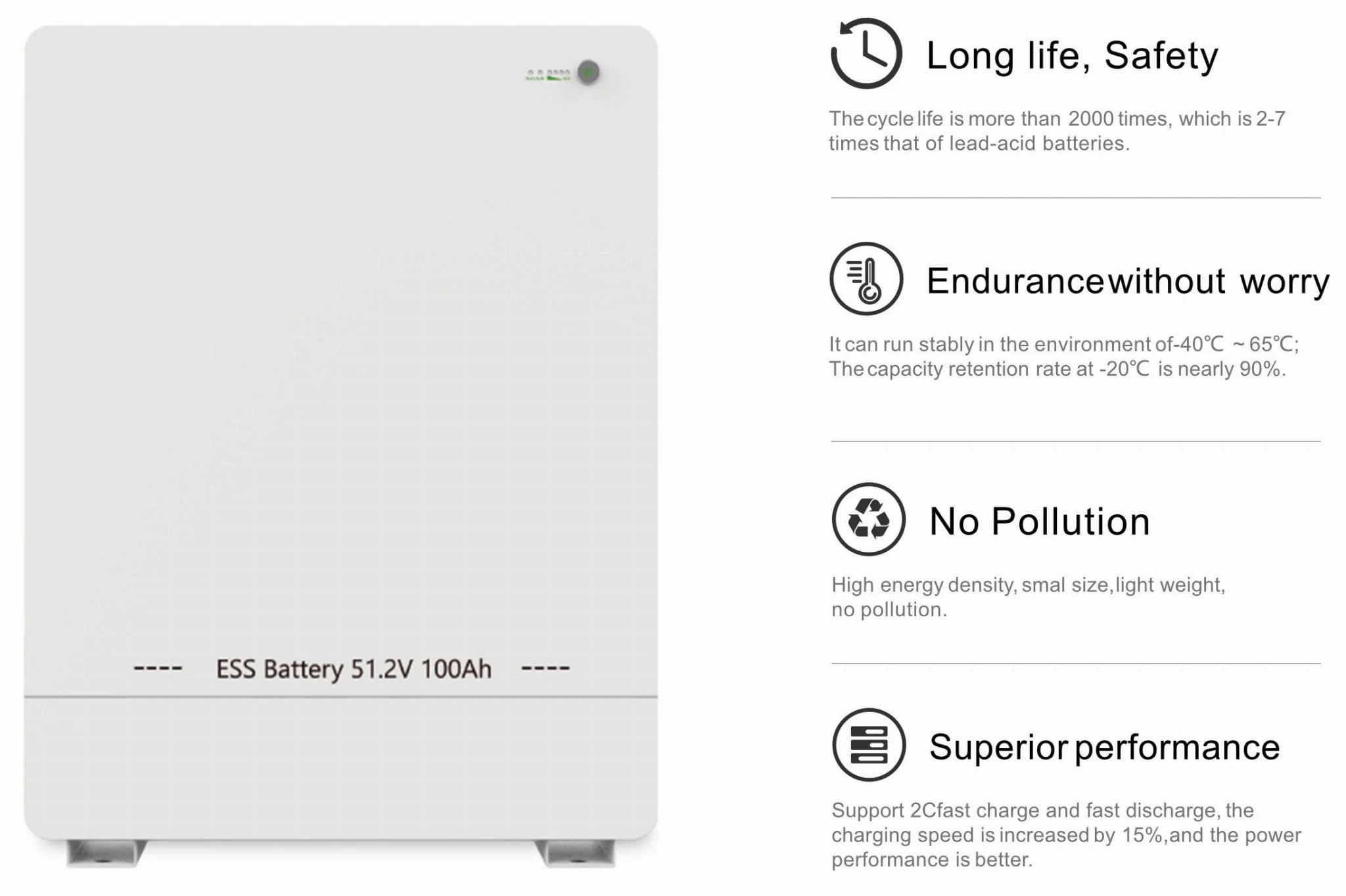

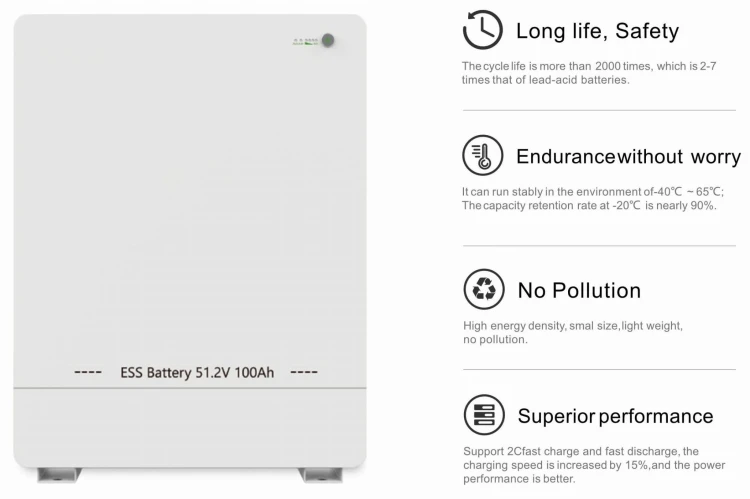

Advantages of the DH A05 model

Safe LFP chemistry
Resistance to extreme temperatures
Fast charging and high current efficiency
Lifespan over 4000 cycles
Light and compact format
Stable operation and long service life
No pollutant emissions
High energy efficiency

⸻

About the manufacturer DAH Solar

DAH Solar is a global manufacturer of premium panels and energy storage, operating globally for over fourteen years.
The company specializes in TOPCon modules, double glass panels and modern LFP energy storage facilities.
DAH Solar products are known for high quality workmanship, stable yields and advanced technology.
The brand is on the Tier 1 Bloomberg list, which confirms its credibility and position on the market. Application

Photovoltaic systems on grid
Off grid systems for homes and companies
Hybrid installations
UPS and critical installations
48V home energy storage
Integration with LV low voltage inverters
