  • ME5268.png

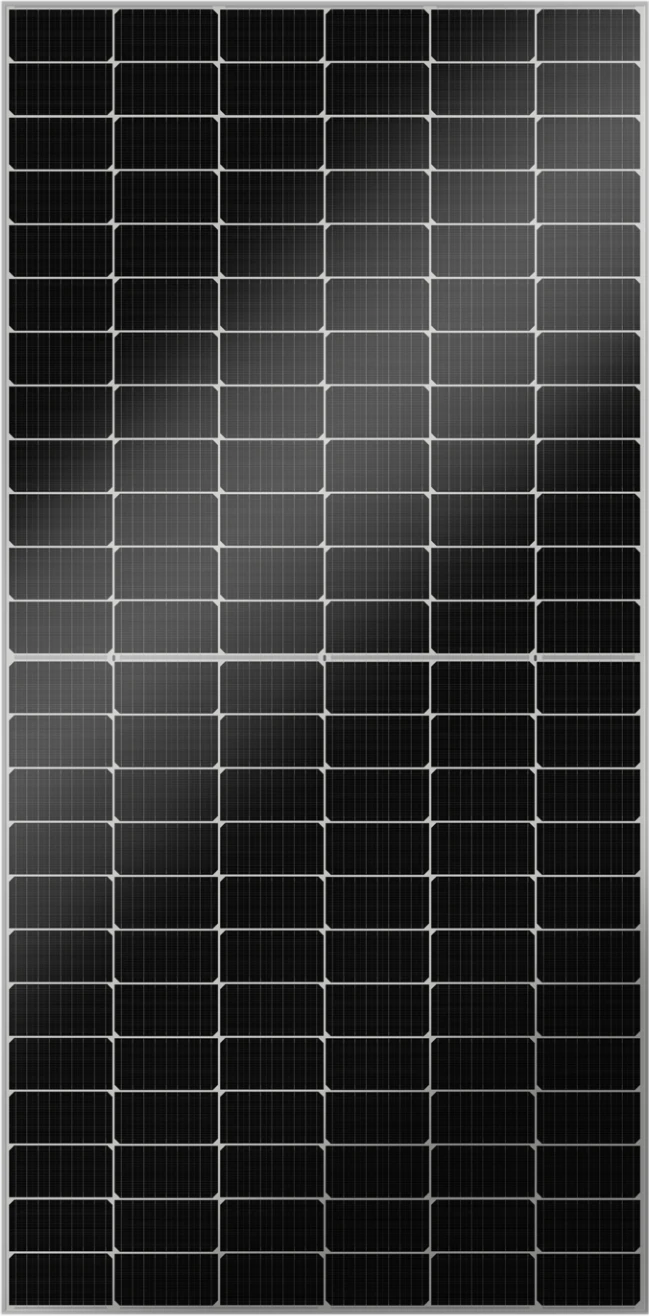

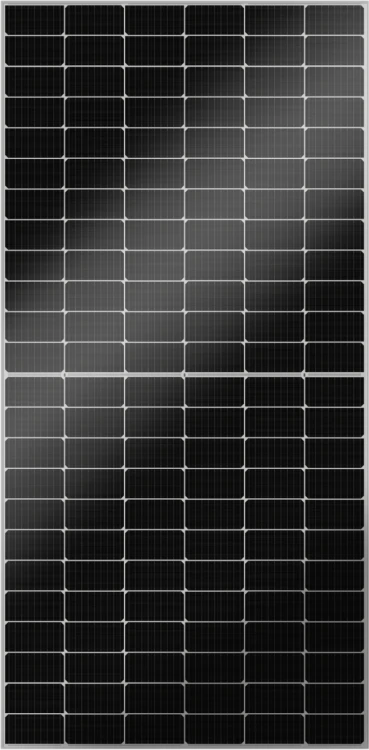

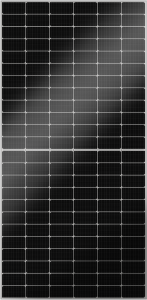

PALLET 31 pcs 545W BB Eco BBEco-545-144-SF-V2 - white backsheet, silver frame HALF-CELL

The BB Eco BBEco-545-144-SF-V2 photovoltaic module is a high-efficiency monocrystalline half-cell panel with a power output of 545 W, designed for maximum performance and durability. Thanks to half-cell technology and a silver frame with a white electrical insulation backsheet, it ensures excellent operating parameters and an aesthetically pleasing installation appearance.

Go to full description
with VAT without VAT
€2,655.06
incl. 23% VAT
Regular price: €3,186.07
-17%
The lowest price during 30 days prior to the reduction: €2,124.05
+25%
The promotion runs until 15 August 2026

Shipping costs are not included in the price.

szt.
Availability:
na wyczerpaniu

Similar models

Ask about the product
Shipping time: 48 godzin

Cechy produktu

Panel parameters

  • Panel power 500-550 W
  • Frame colour Silver
  • Sales unit Pallet
  • Module height over 200 cm
  • Panel power [W] 545
  • Module height [cm] 227.8

Opis

The BB Eco BBEco-545-144-SF-V2 photovoltaic module is a high-efficiency monocrystalline half-cell panel with a power output of 545 W, designed for maximum performance and durability. Thanks to half-cell technology and a silver frame with a white electrical insulation backsheet, it ensures excellent operating parameters and an aesthetically pleasing installation appearance.

The BB Eco brand, represented by Avrii Sp. z o.o. from Tarnów, specialises in supplying modern and reliable photovoltaic modules. BB Eco products combine high manufacturing quality, European standards, and long-term reliability warranty.

Electrical parameters

  • Rated power (Pmpp): 545 W
  • Rated voltage (Umpp): 42.0 V
  • Rated current (Impp): 12.98 A
  • Open-circuit voltage (Voc): 49.6 V
  • Short-circuit current (Isc): 13.93 A
  • Module efficiency: 21.1%
  • Power tolerance: 0 to +5 W
  • Nominal operating cell temperature (NOCT): 45 °C ± 2
  • Power temperature coefficient: −0.38%/°C
  • Operating temperature range: −40 to +85 °C

Mechanical parameters

  • Module dimensions: 2278 × 1134 × 35 mm
  • Module weight: 28.5 kg ± 3%
  • Connector ingress protection: IP68
  • Cable length: 1300 mm
  • Connectors: MC4 compatible
  • Maximum mechanical load: 5400 Pa
  • Maximum system voltage: 1500 VDC
  • Reverse current protection: 25 A
