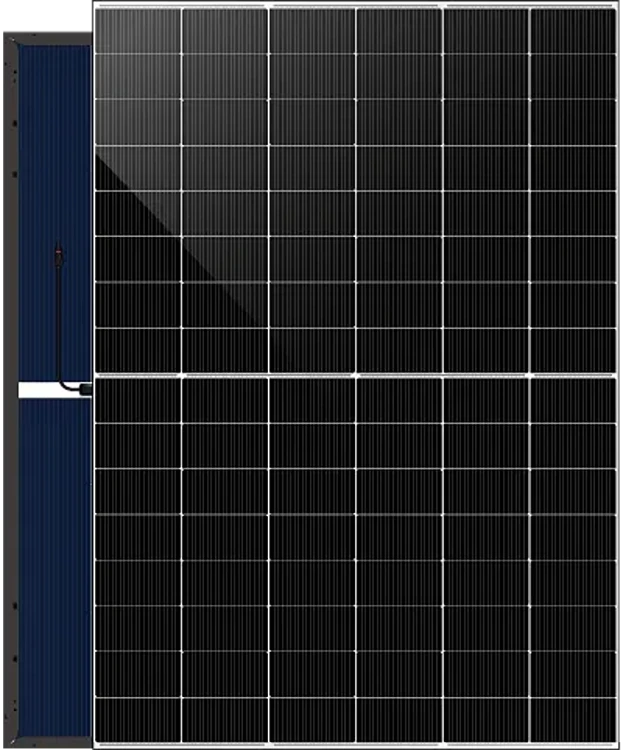

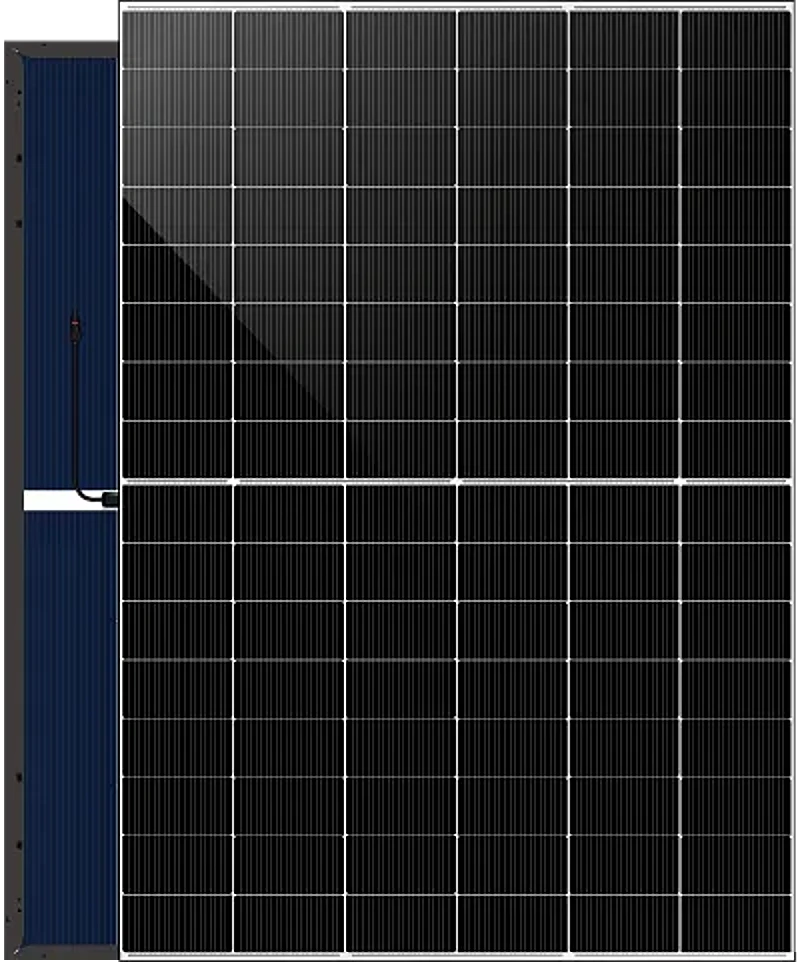

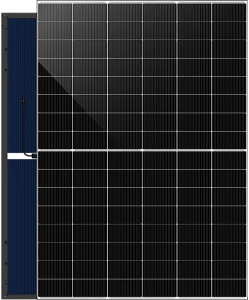

Pallet of 36 pcs. DAH Solar 470W Bifacial Double Glass photovoltaic panel

The subject of the sale is a full palette of 36 DAH Solar photovoltaic panels with a power of 470W each, made using N-Type TOPCon technology, in a bifacial version with a double glass structure.

Model from the product card: DHN-48Z20/DG(BW) 470W.

Total pallet power: 16.92 kWp.

The panels belong to the series of high-performance DAH Solar double glass modules. The use of N-Type cells, TOPCon technology and a double-sided bifacial structure allows for high efficiency, very good operation in various sunlight conditions and additional energy yield from the back of the modules.

⸻

The most important features of the product

• Full pallet: 36 pieces of panels
• Power of one panel: 470W
• Total pallet power: 16.92 kWp
• Model DHN-48Z20/DG(BW)
• N-Type TOPCon technology
• Double-sided bifacial modules
• Double glass construction
• 96 cells in a 6 × 16 arrangement
• Module efficiency 23.52%
• Bifacial factor 80 ±5%
• Possible additional energy yield from the rear side of the module
• No-Busbar technology shortening the power transmission path and reducing losses
• Better temperature coefficient
• Very good performance in low light conditions
• High mechanical strength
• 2.0 mm high transmittance glass with anti-reflective coating
• IP68 junction box with 3 bypass diodes
• MC4 compatible connector
• 25 years warranty on material and technology
• 30 years of linear power warranty

⸻

Technical specifications of one panel

• Manufacturer: DAH Solar
• Model: DHN-48Z20/DG(BW)
• Maximum power: 470 W
• Module type: High Efficiency Double Glass PV Module
• Cell type: N-Type
• Cell technology: TOPCon
• Number of cells: 96 pieces
• Cell arrangement: 6 × 16
• Cell size: 184 × 107 mm
• Construction: double glass
• Glass: 2.0 mm, highly transparent, with anti-reflective coating
• Junction box: IP68, 3 bypass diodes
• Connector: MC4 compatible
• Cable: 4.0 mm², length 300 / 200 mm, length adjustable

⸻

Dimensions and weight

• Dimensions of one panel: 1762 × 1134 × 30 mm
• Weight of one panel: 24.0 kg
• Number of panels on the pallet: 36 pieces
• Estimated weight of panels only: approximately 864 kg, excluding the weight of the pallet and packaging

⸻

Pallet data

• Number of panels on the pallet: 36 pieces
• Power of one panel: 470 W
• Total pallet power: 16,920 W / 16.92 kWp
• The product is factory-packed and secured for transport

⸻

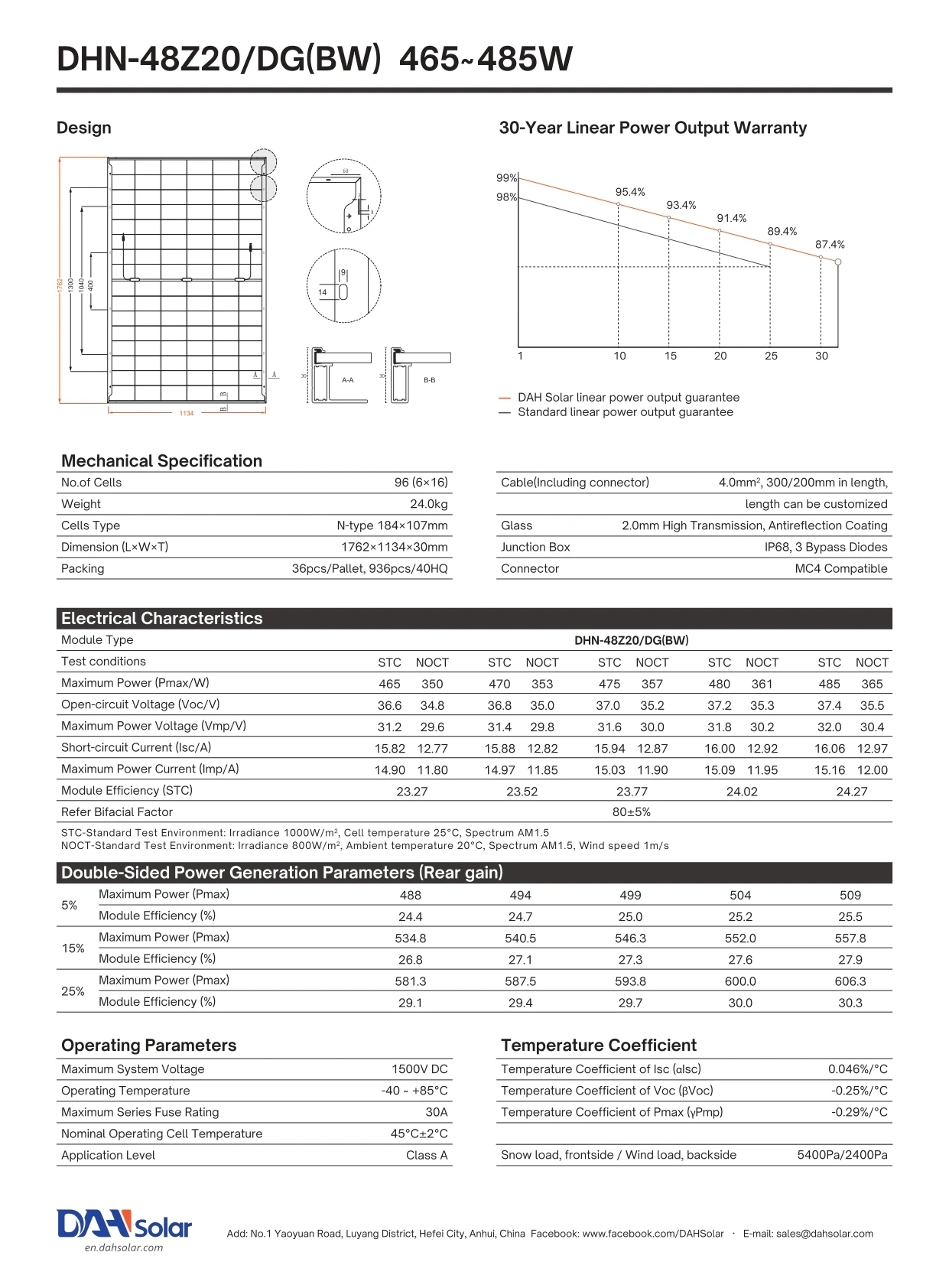

Electrical parameters STC of one panel

• Maximum power Pmax: 470 W
• Open-circuit voltage Voc: 36.8 V
• Short-circuit current Isc: 15.88 A
• Operating voltage Vmp: 31.4 V
• Operating current Imp: 14.97 A
• Module efficiency: 23.52%

⸻

NOCT electrical parameters of one panel

• Maximum power Pmax: 353 W
• Open-circuit voltage Voc: 35.0 V
• Short-circuit current Isc: 12.82 A
• Operating voltage Vmp: 29.8 V
• Operating current Imp: 11.85 A

⸻

Operating parameters

• Maximum system voltage: 1500 V DC
• Operating temperature range: -40°C to +85°C
• Maximum series fuse: 30 A
• Nominal cell operating temperature: 45°C ±2°C
• Application class: Class A
• Bifacial factor: 80 ±5%

⸻

Mechanical resistance

• Snow load from the front: 5400 Pa
• Rear wind load: 2400 Pa

⸻

Temperature coefficients

• Temperature coefficient Isc: +0.046%/°C
• Temperature coefficient Voc: -0.25%/°C
• Temperature coefficient Pmax: -0.29%/°C

⸻

Additional energy yield from the rear side

Thanks to bifacial technology, the panels can generate additional energy from the back of the module. For the 470W variant, the product card shows the following values ​​with additional yield:

• With 5% additional yield: 494 W per module
• With 15% additional yield: 540.5 W per module
• With 25% additional yield: 587.5 W per module

⸻

Warranty and degradation

• 25 years warranty on material and technology
• 30 years of linear power warranty
• Guaranteed power after 30 years: 87.4%

⸻

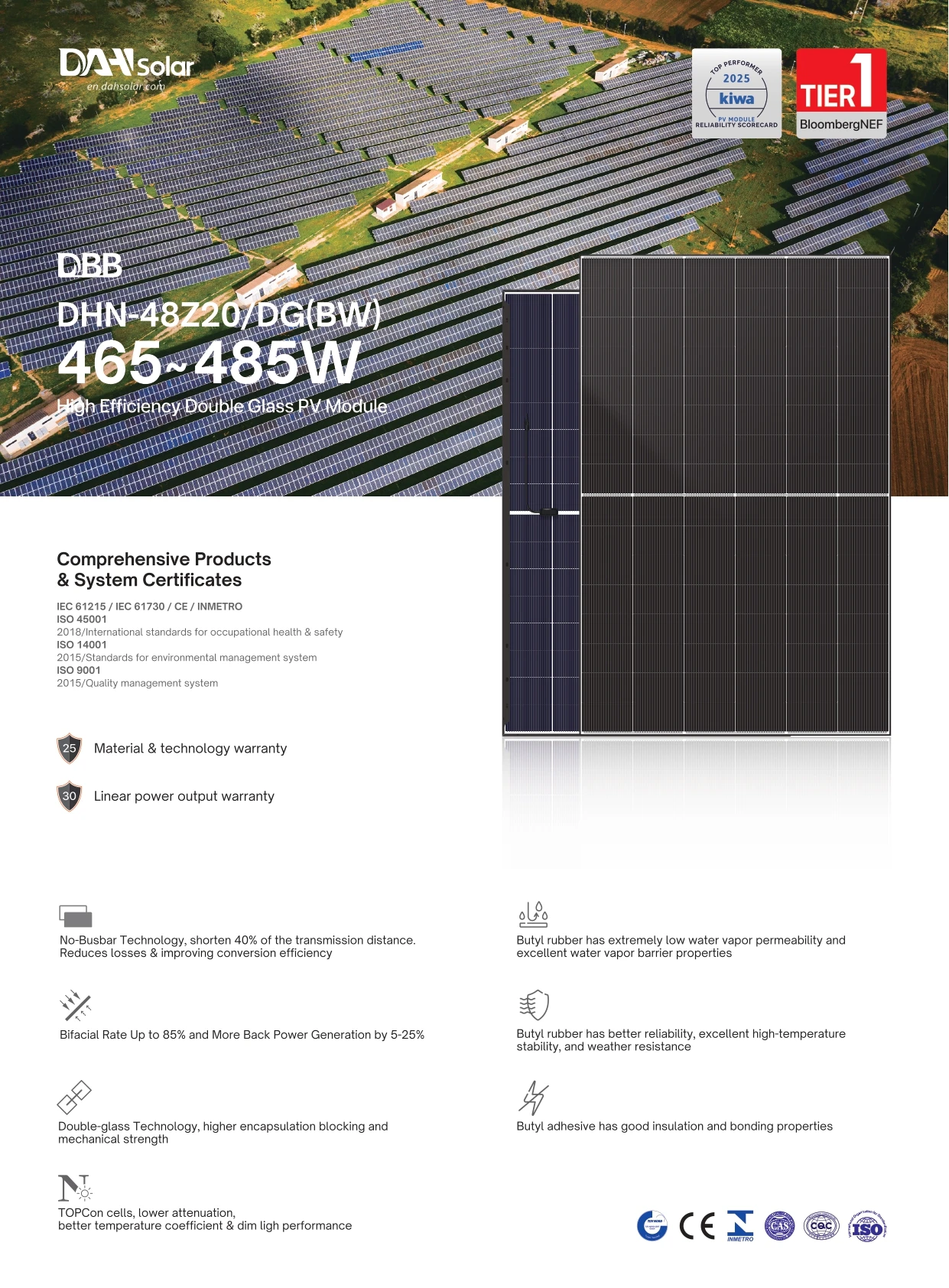

Additional information about technology

DAH Solar DHN-48Z20/DG(BW) panels use N-Type TOPCon cells, which ensure high efficiency, better operation at elevated temperatures and good performance in low light conditions.

No-Busbar technology shortens the current transmission path, reduces losses and improves conversion efficiency. The double glass structure increases the mechanical resistance of the modules and improves durability over a long period of use.

Bifacial modules can use light reflected from the ground, so they are particularly suitable for light roofs, ground structures and in installations where the back side of the panels has access to the reflected radiation.

⸻

Additional information about the manufacturer

DAH Solar is a manufacturer of photovoltaic modules offering modern solutions in N-Type, bifacial and double glass technologies. Modules of this brand are intended for home, commercial and industrial installations.

⸻
