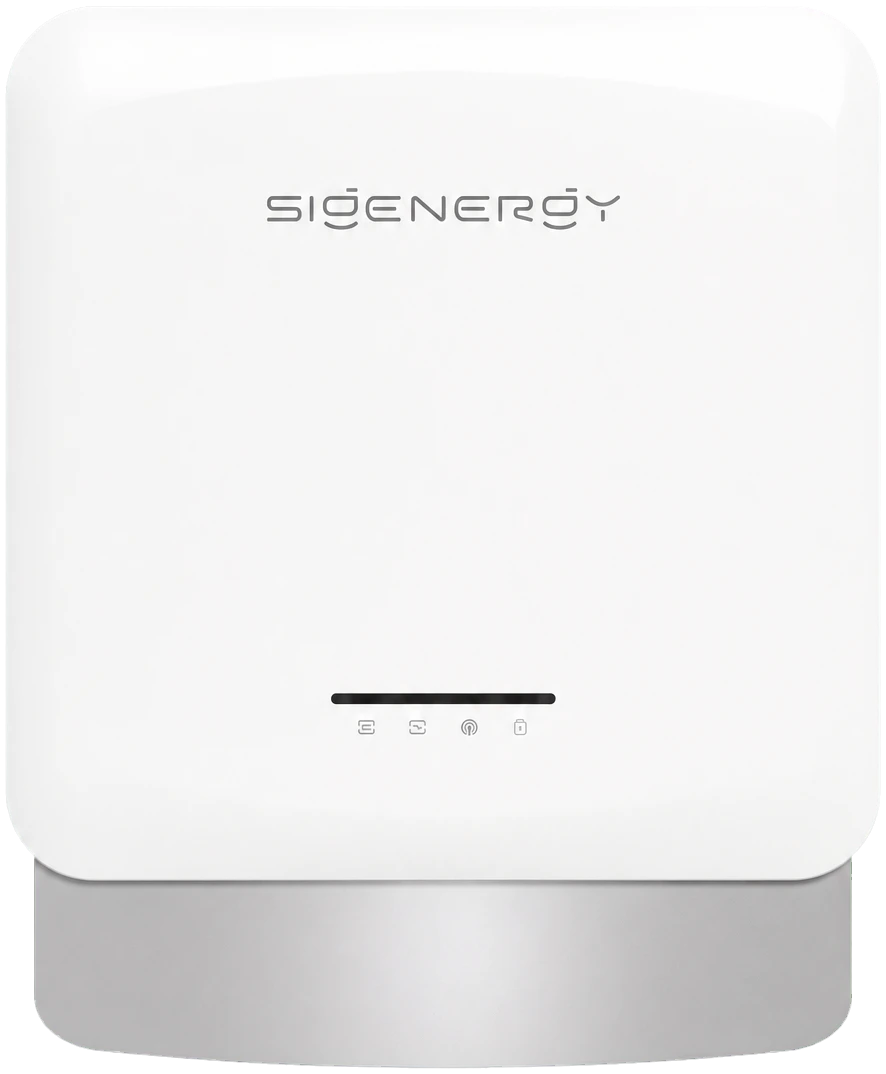

Sigenergy 10kW TP2 hybrid inverter
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5641
Cechy produktu
Inverter parameters
- Inverter power 5-10 kW
- Inverter type Hybrid
- Number of phases Three-phase
- Power [kW] 10
Opis
Sigenergy Sigen Hybrid 10.0 TP2 is a three-phase hybrid inverter designed for larger PV installations with energy storage capability. Documentation indicates the TP2 series offers a maximum DC voltage of up to 1100 V, two MPPTs, and compatibility with SigenStor BC battery controllers and SigenStor BAT modules. The device provides on-grid and backup modes with high short-term peak power.
The inverter has natural cooling, operates over a wide temperature range from -30 to 60 °C, carries an IP66 rating, and offers expanded protections: insulation monitoring, DC reverse polarity protection, AC and DC protections. Communication options via WLAN, Ethernet, and RS485 enhance integration and installation monitoring.
Key features
- Three-phase hybrid inverter Sigen Hybrid 10.0 TP2
- 2 MPPT, max. DC voltage up to 1100 V
- Compatible with SigenStor BC and SigenStor BAT (energy storage systems)
- Advanced protections: insulation monitoring, DC reverse polarity, AFCI
- Operating range -30 °C to 60 °C and IP66 rating
- Communication: WLAN, Fast Ethernet, RS485
