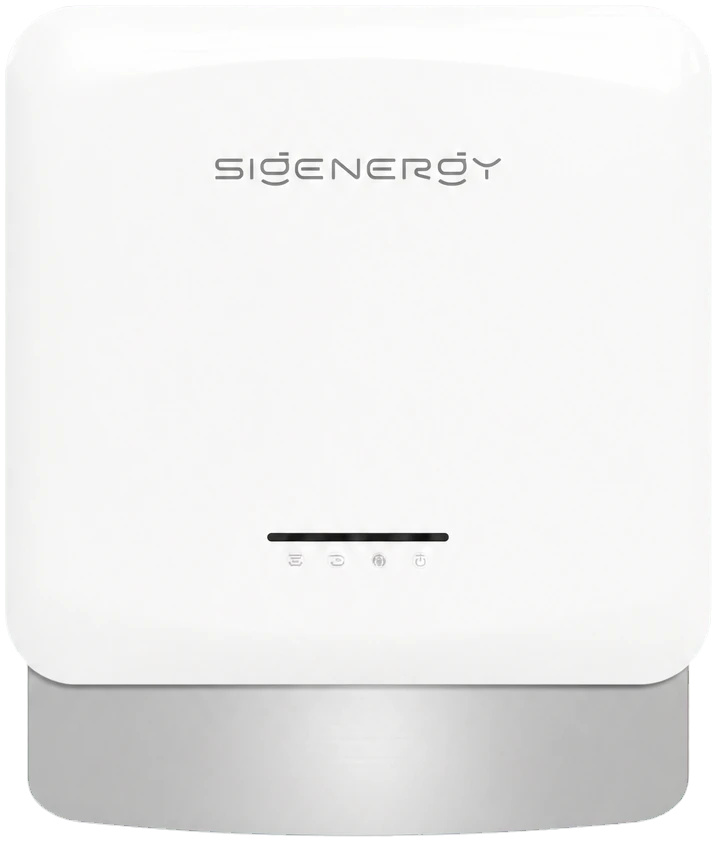

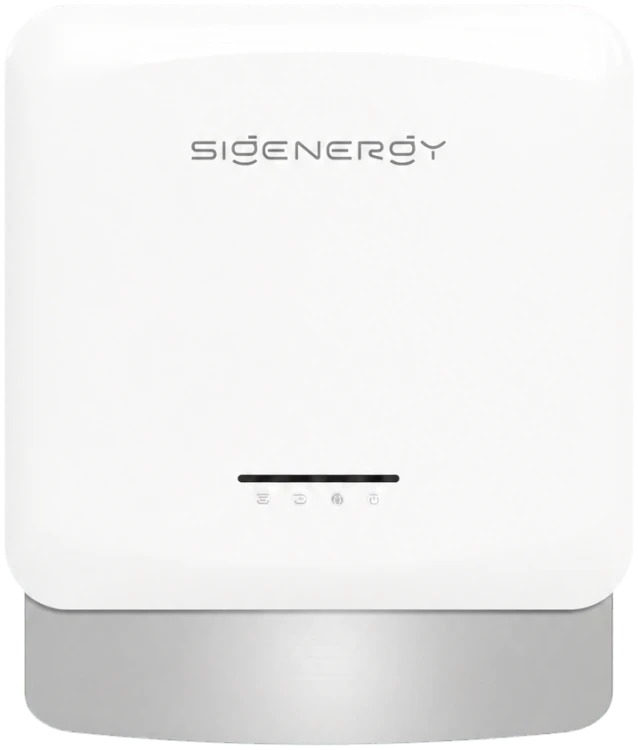

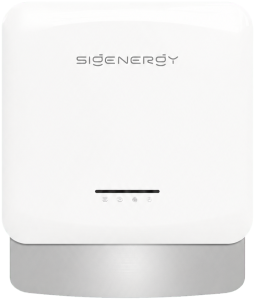

Sigenergy 5kW TP2 hybrid inverter
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5636
Cechy produktu
Inverter parameters
- Inverter power up to 5 kW
- Inverter type Hybrid
- Number of phases Three-phase
- Power [kW] 5
Opis
Sigenergy 5kW TP2 hybrid inverter is a three-phase energy controller designed for installations with energy storage and advanced load management. The device features a slim enclosure (99 mm), quiet operation, and the ability to function in challenging temperature conditions from -30 °C to 60 °C. It supports SigenStor batteries and emergency power operation with momentary power increase.
The TP2 model offers a nominal power of 5 kW and two MPPT trackers (MPPT range 50–550 V for low voltage version or 160–1000 V for high voltage in other variants), enabling optimal maximum power point tracking. It is equipped with a wide range of protections (including insulation monitoring, AFCI, surge protection) and communication options: WLAN, Ethernet, and RS485.
Key features
- Nominal output power: 5 kW (three-phase)
- Slim enclosure: 99 mm
- Operating temperature range from -30 °C to 60 °C
- 2 MPPT (flexible MPPT range depending on variant)
- Supports SigenStor BC and BAT (battery connection possible)
- Advanced protections: AFCI, insulation monitoring, surge protection
