Surge Protector Type 1+2+3(BCD) 100kA 4P DS254VG-300 C3713
Product code: ME6709
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Shipping & Returns
Master Energy | Master Investment Sp. z o.o.
1. Right of Return (14 Days)
Individual consumers (B2C) have the right to withdraw from the contract and return purchased items within 14 calendar days from delivery without stating a reason.
2. How to submit a return or claim?
- 📧 E-mail: pv@masterenergy.eu
- 📞 Phone: +48 884 570 201
- 🏢 Registered Address: Master Investment Sp. z o.o., Rondo ONZ 1, 00-124 Warsaw, Poland (VAT ID: PL7010345632)
3. Complete terms and conditions
Detailed freight information, pallet shipping methods, and B2B commercial terms are available at our dedicated information page:
Payment methods
Instant Payments
You can pay for your order immediately using any available payment method. All payment data is encrypted and secured by an SSL certificate.
- Credit & Debit Cards – Visa and Mastercard, processed securely by Stripe.
- Apple Pay – convenient digital wallet checkout in one tap on Apple devices.
- Google Pay – seamless payment with stored cards in Google Wallet.
- BLIK – 6-digit code authorization (available for Polish transactions).
- PayPo – buy now, pay in 30 days or in flexible installments.
- Klarna – buy now, pay in 30 days without extra fees.
- Instant Bank Transfer – automated bank transfer through PayU.
- PayPal – secure multi-currency payment directly from your PayPal account.
Traditional Payments
- Bank Transfer – direct wire transfer to our bank account. Proforma invoice and details are sent by email.
- Cash on Delivery – pay the courier upon package delivery (maximum 10,000 PLN per order).
Installments
PayU Installments – split your order into manageable monthly payments with an instant online application process.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Description

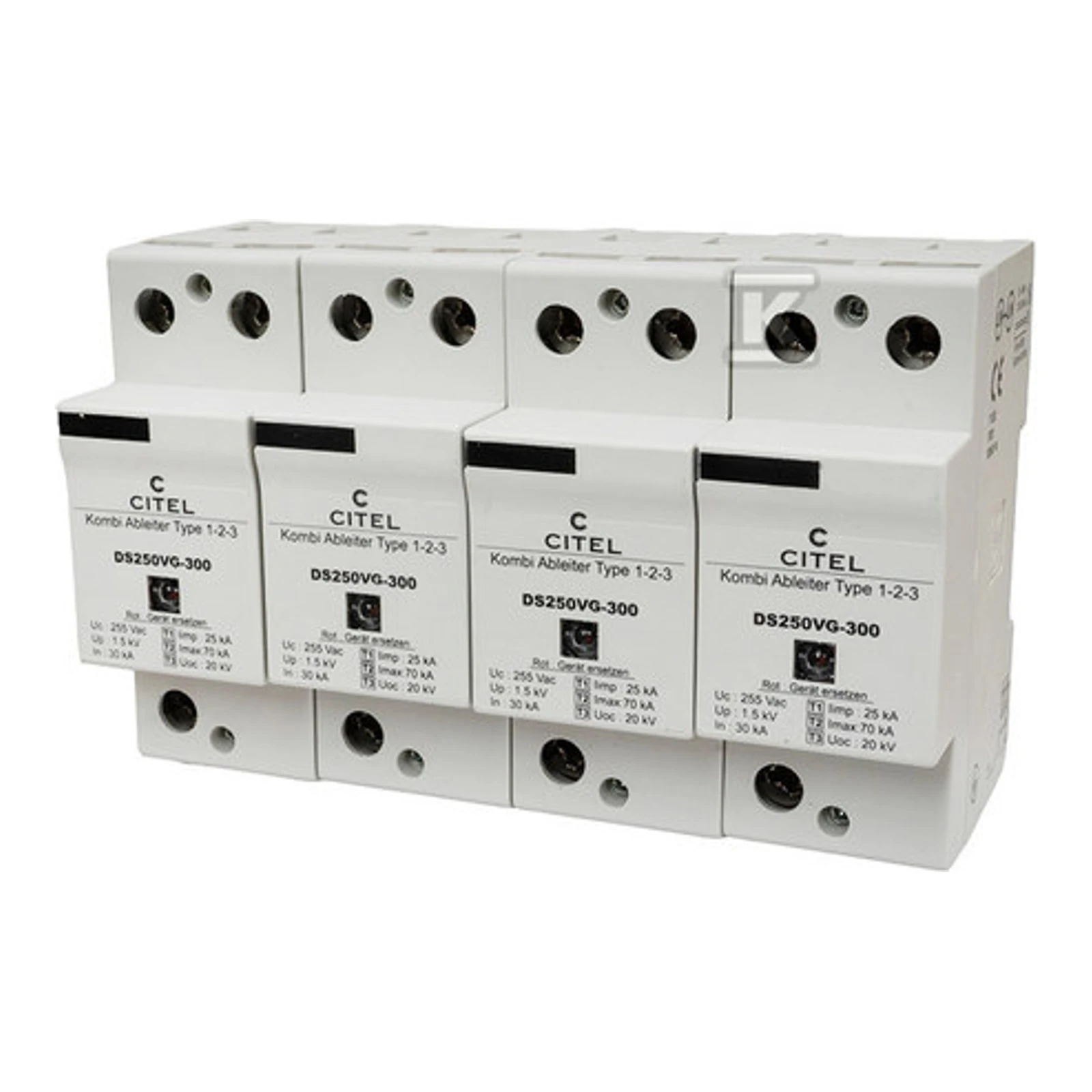

The Surge Protector Type 1+2+3 DS254VG-300/G is a multi-pole protection module for three-phase installations with a neutral wire (3P+N). The device combines a gas discharge spark gap and varistor elements, providing protection against lightning strikes and transient overvoltages with a declared total lightning current discharge capacity of 100 kA (1x 10/350 µs) and 25 kA per pole.
Manufacturer Information
The manufacturer of the device is CITEL — a company specializing in surge protection and lightning protection systems. The technical data sheet describes the model DS254VG-300/G offered by CITEL, compliant with IEC 61643-11 and EN 61643-11 standards and UL approvals.
Selected Electrical Parameters
- Type SPD: IEC 1+2+3 (combined)
- Nominal voltage Un: 230/400 Vac
- Maximum AC voltage Uc: 255 Vac
- Lightning surge current per pole (10/350 µs): Iimp = 25 kA
- Total lightning current discharge capacity (10/350 µs): Itotal = 100 kA (1x 10/350 µs)
- Maximum impulse discharge capacity 8/20 µs per pole: Imax = 70 kA
- 15 impulses 8/20 µs (In): 30 kA
- Common and differential protection: CM / DM (L/N and N/PE)
- Protection level at In (L/N): Up = 1.5 kV
- Short-circuit withstand: Isccr = 50,000 A
Mechanical Parameters
- Technology: VG-Technologie (MOV + GSG) — high-energy varistor + gas discharge spark gap
- Configuration: 3-phase + N (4-pole)
- Connection type: Rail terminals (Fahrstuhlklemme) 6-35 mm² (possible 50 mm²) / possibility of mounting on comb rail
- Construction: Monoblock – housing for mounting on DIN rail 35 mm
- Housing material: Thermoplastic UL94 V-0
- Operating temperature range: -40 °C to +85 °C
- Protection degree: IP20
- Behavior upon damage: Permanent disconnection from the network; optical signaling
- Error signaling: 1 mechanical indicator per pole (red)
- Remote signal: Potential-free contact (potentialfrei) — normally closed switch
- Thermal disconnectors: internal
- Maximum primary protection value (fuse): max. 315 A (gL/gG)
