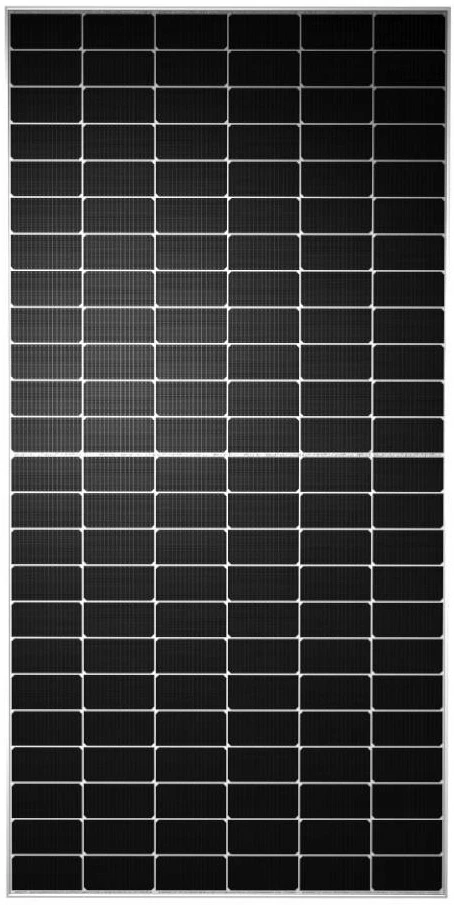

TONGWEI Solar 590W Bifacial Glass-Glass Photovoltaic Panel

The subject of the sale is a TW Solar photovoltaic panel with a power of 590W in N-type Half-cell technology, in a bifacial version with a glass-glass structure.

Model from the product card: TWMND-72HD590W.

The panel uses modern monocrystalline N-type cells and a bifacial structure, so it can generate energy from both the front and back of the module. The glass-glass construction increases the durability of the panel, and the high efficiency makes the module very suitable for commercial and industrial installations and photovoltaic farms.

⸻

The most important features of the product

• Nominal power 590W
• Two-sided bifacial module
• N-type Half-cell technology
• Monocrystalline N-type TNC cells
• Glass-glass construction – glass on the front and back
• 144 cells in a 6 × 24 arrangement
• Module efficiency 22.8%
• Additional energy yield from the rear side of the module
• Double-sidedness 80 ±5%
• Positive power tolerance 0 to +3%
• High power output and low LCOE
• IP68 junction box with 3 diodes
• Anodized aluminum alloy frame
• Mechanical resistance to snow and wind loads
• 12-year manufacturer's warranty on materials and workmanship
• 30 years linear power warranty

⸻

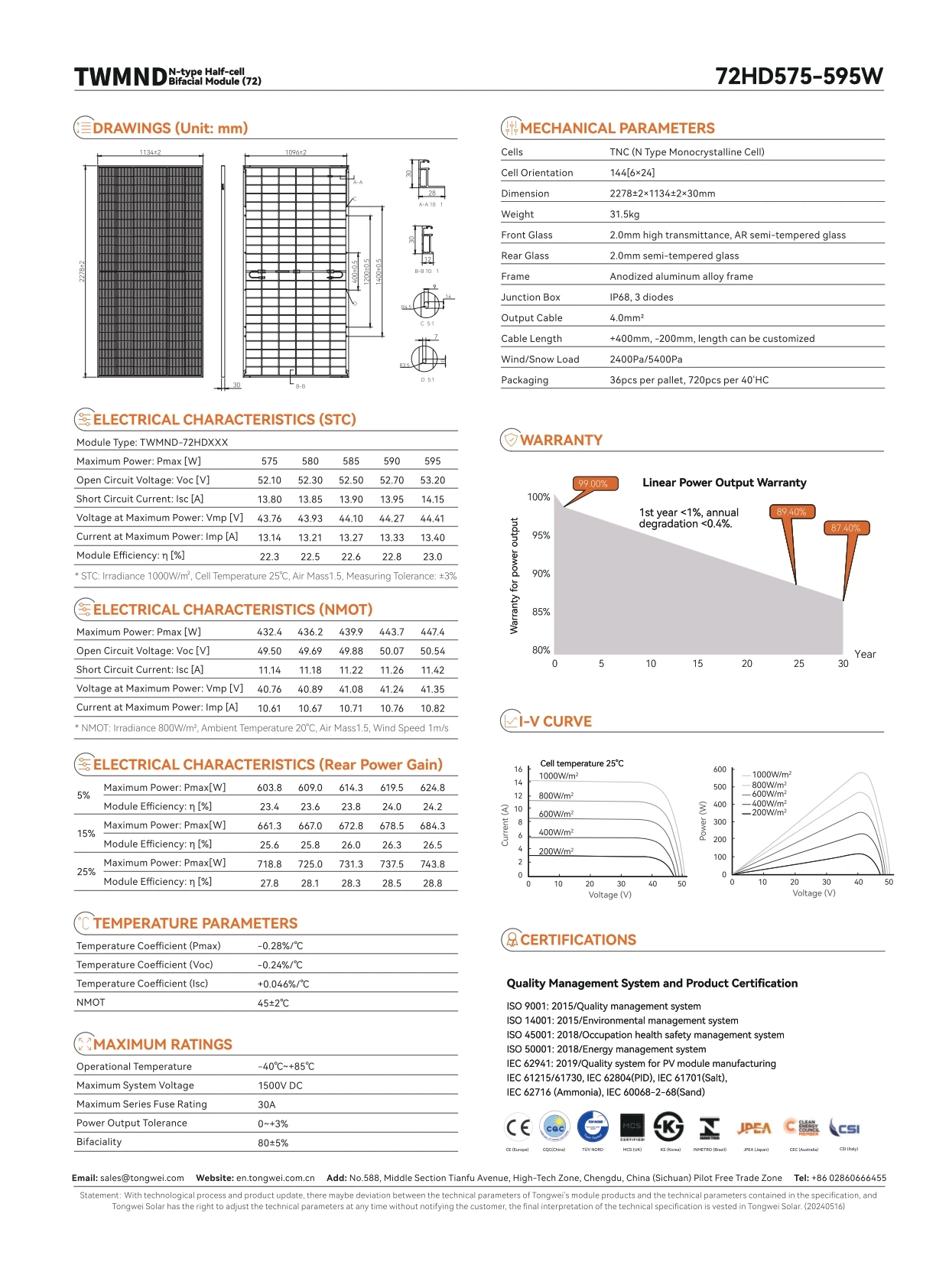

Technical specifications

• Manufacturer: TW Solar
• Model: TWMND-72HD590W
• Series: TWMND 72HD575–595W
• Module type: N-type Half-cell Bifacial Module
• Maximum power: 590 W
• Cell type: TNC, N-type monocrystalline
• Number of cells: 144 pieces
• Cell arrangement: 6 × 24
• Construction: bifacial glass-glass
• Front glass: 2.0 mm, highly transparent, AR coated, semi-tempered
• Back glass: 2.0 mm, semi-tempered
• Frame: anodized aluminum alloy
• Junction box: IP68, 3 diodes
• Output cable: 4.0 mm², +400 mm / -200 mm, length can be adjusted

⸻

Dimensions and weight

• Panel dimensions: 2278 × 1134 × 30 mm
• Panel weight: 31.5 kg

⸻

STC electrical parameters

• Maximum power Pmax: 590 W
• Open-circuit voltage Voc: 52.70 V
• Short-circuit current Isc: 13.95 A
• Operating voltage Vmp: 44.27 V
• Operating current Imp: 13.33 A
• Module efficiency: 22.8%

⸻

NMOT electrical parameters

• Maximum power Pmax: 443.7 W
• Open-circuit voltage Voc: 50.07 V
• Short-circuit current Isc: 11.26 A
• Operating voltage Vmp: 41.24 V
• Operating current Imp: 10.76 A

⸻

Operating parameters

• Operating temperature range: -40°C to +85°C
• Maximum system voltage: 1500 V DC
• Maximum series protection: 30 A
• Power tolerance: 0 to +3%
• Double-sidedness: 80 ±5%
• NMOT: 45 ±2°C

⸻

Mechanical resistance

• Snow load: 5400 Pa
• Wind load: 2400 Pa

⸻

Temperature coefficients

• Temperature coefficient Pmax: -0.28%/°C
• Temperature coefficient Voc: -0.24%/°C
• Temperature coefficient Isc: +0.046%/°C

⸻

Additional energy yield from the rear side

Thanks to bifacial technology, the panel can generate additional energy from the back of the module. For the 590W model, the product card shows the following values ​​for additional yield:

• At 5% additional yield: 619.5 W
• With 15% additional yield: 678.5 W
• With 25% additional yield: 737.5 W

⸻

Warranty and degradation

• 12 years warranty on materials and workmanship
• 30 years linear power warranty
• Degradation in the first year: less than 1%
• Annual degradation after the first year: less than 0.4%
• Guaranteed power after 30 years: 87.4%

⸻

Additional information about application

The TW Solar TWMND-72HD590W panel has been designed for high energy production and reliable operation in large photovoltaic installations. It will work well in commercial, industrial, roof and ground-mounted PV farm installations.

The bifacial glass-glass design allows for increased energy yield in places where the back side of the module can use light reflected from the ground, e.g. on light roofs, ground structures or surfaces with a high reflectivity.

⸻

Delivery information

• The sale concerns one piece of panel
• The product is properly protected during transport
• Delivery via a proven transport company
