PALLET 36 pcs. ASTRONERGY 500W Bifacial Full Black Transparent photovoltaic panel
ASTRONERGY 500W N7 CHSM54RN(DGT)(BLH)/F-BH is an N-type TOPCon module in a glass-glass design, intended for installations requiring high efficiency and durability.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5239_36szt
Cechy produktu
Panel parameters
- Panel power 450-500 W
- Cell type TOPCon
- Glass-glass Yes
- Sales unit Pallet
- Panel power [W] 500
Opis
ASTRONERGY 500W N7 CHSM54RN(DGT)(BLH)/F-BH is an N-type TOPCon module in a glass-glass design, intended for installations requiring high efficiency and durability.
Astronergy, a brand of Chint New Energy, produces TOPCon and N-type modules for rooftop, commercial and large-scale installations, with an emphasis on efficiency and repeatability of parameters.

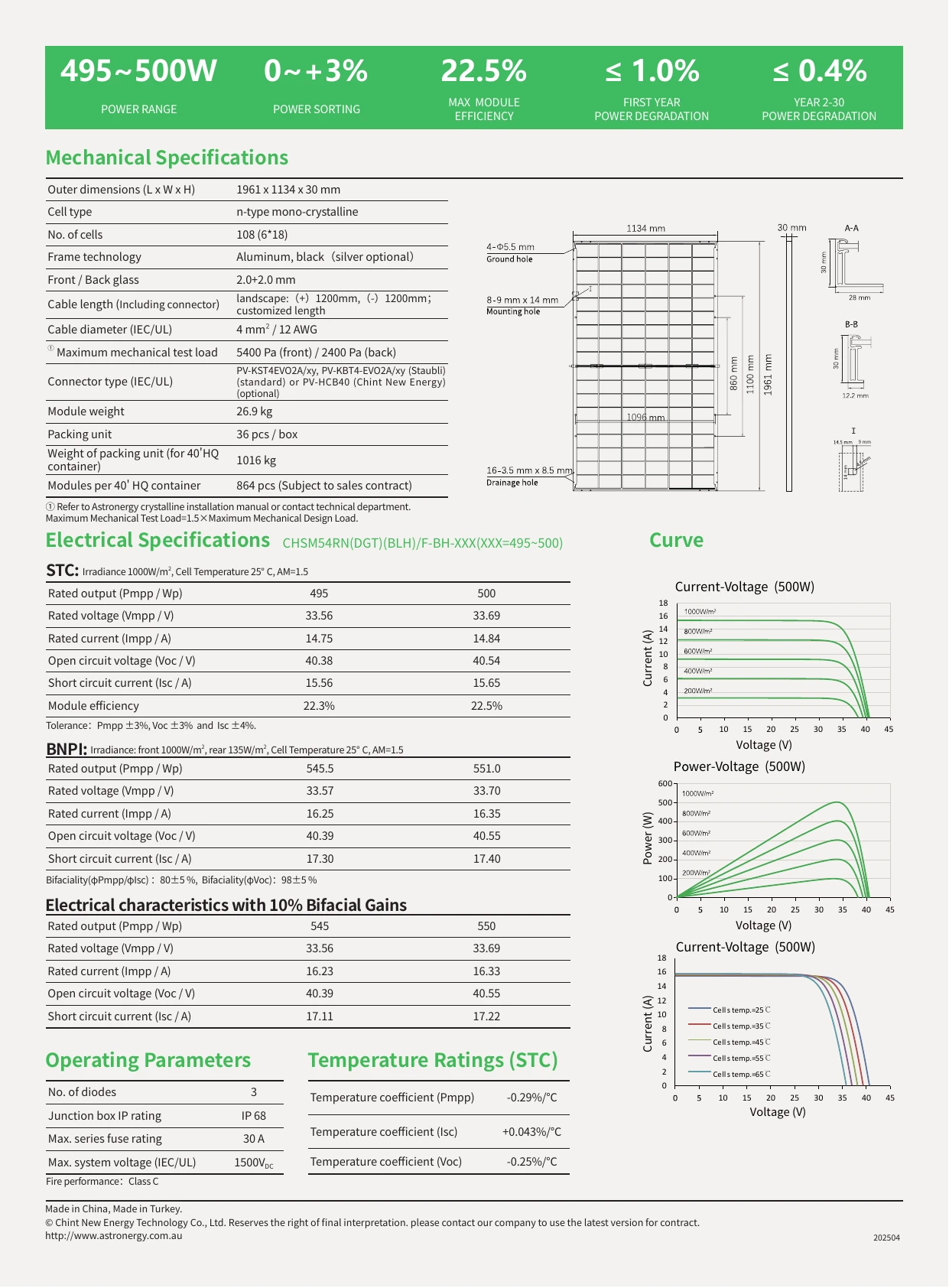

Electrical parameters
- Maximum power Pmax: 500 W
- Open circuit voltage Voc: 40.54V
- Voltage at the maximum power point Vmp: 33.69 V
- Short-circuit current Isc: 15.65 A
- Current at the maximum power point Imp: 14.84 A
- Module efficiency: 22.5%
- Pmpp Tolerance: ±3%
- Maximum system voltage: 1500 V DC
- Maximum series fuse: 30 A
- Temperature coefficient Pmpp: -0.29%/°C
Mechanical parameters
- Cells: N-type mono, 108 pcs. (6 x 18)
- Dimensions: 1961 x 1134 x 30 mm
- Weight: 26.9 kg
- Glass: 2.0mm + 2.0mm
- Frame: black/silver aluminum
- Junction box: IP68
- Wires: 4 mm², 12 AWG
- Mechanical load: front 5400 Pa, rear 2400 Pa
- Packing: 36 pieces per package
