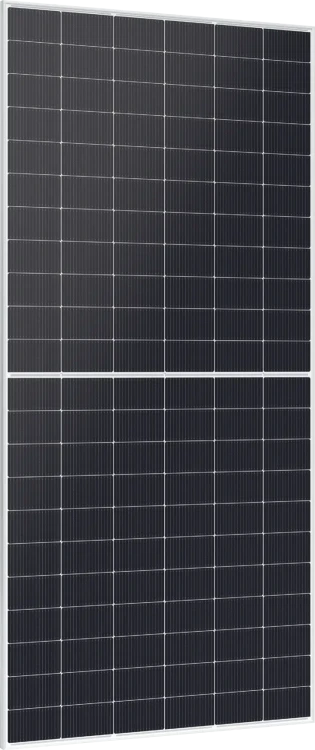

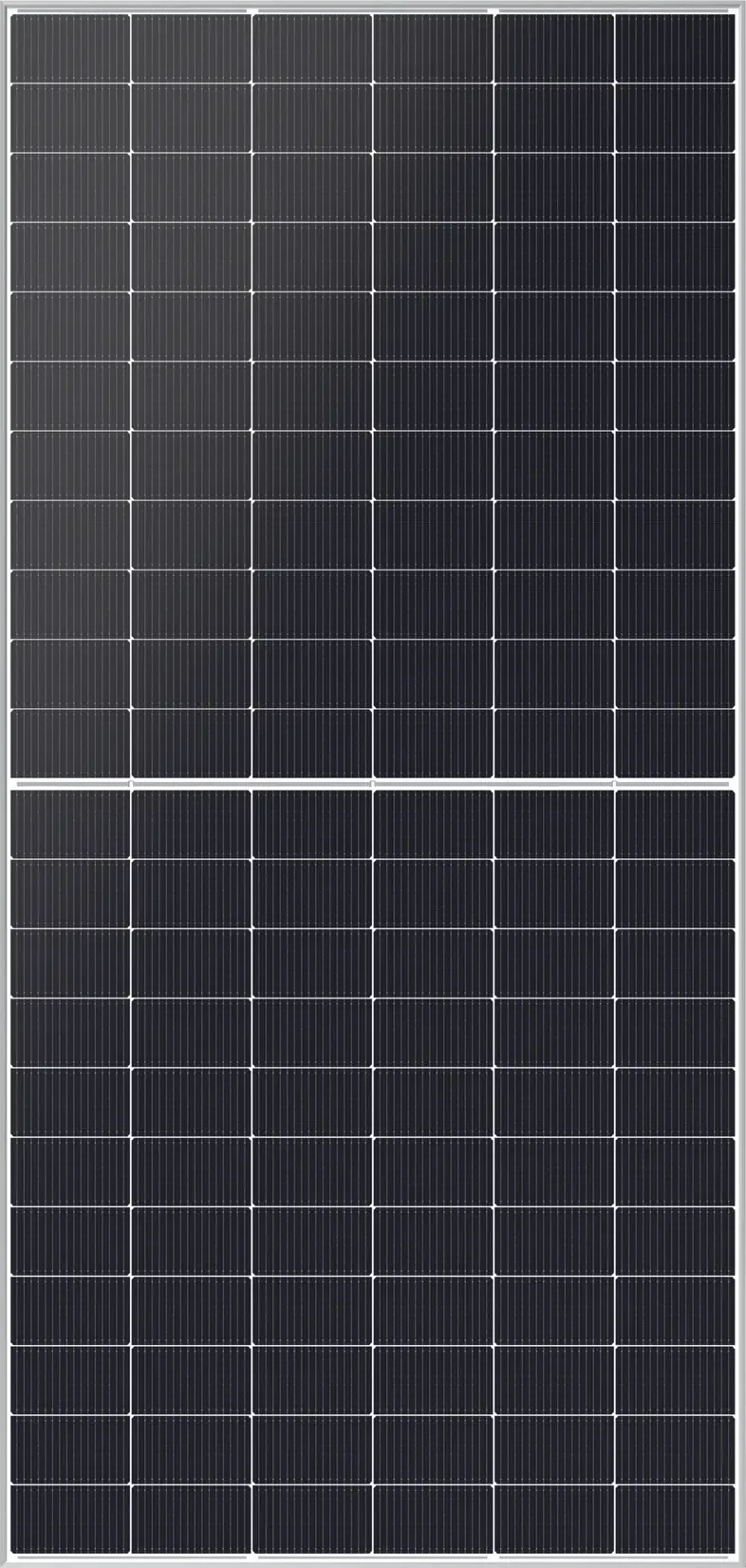

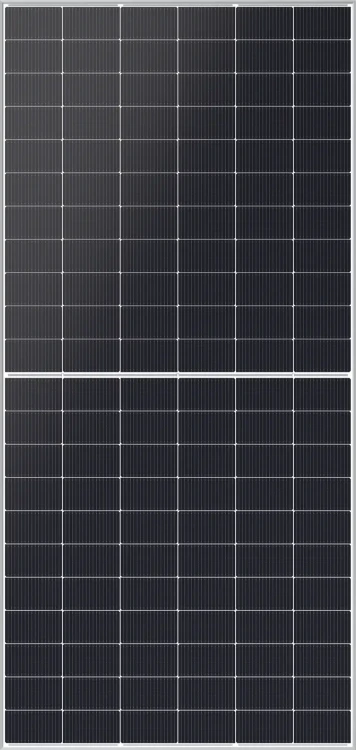

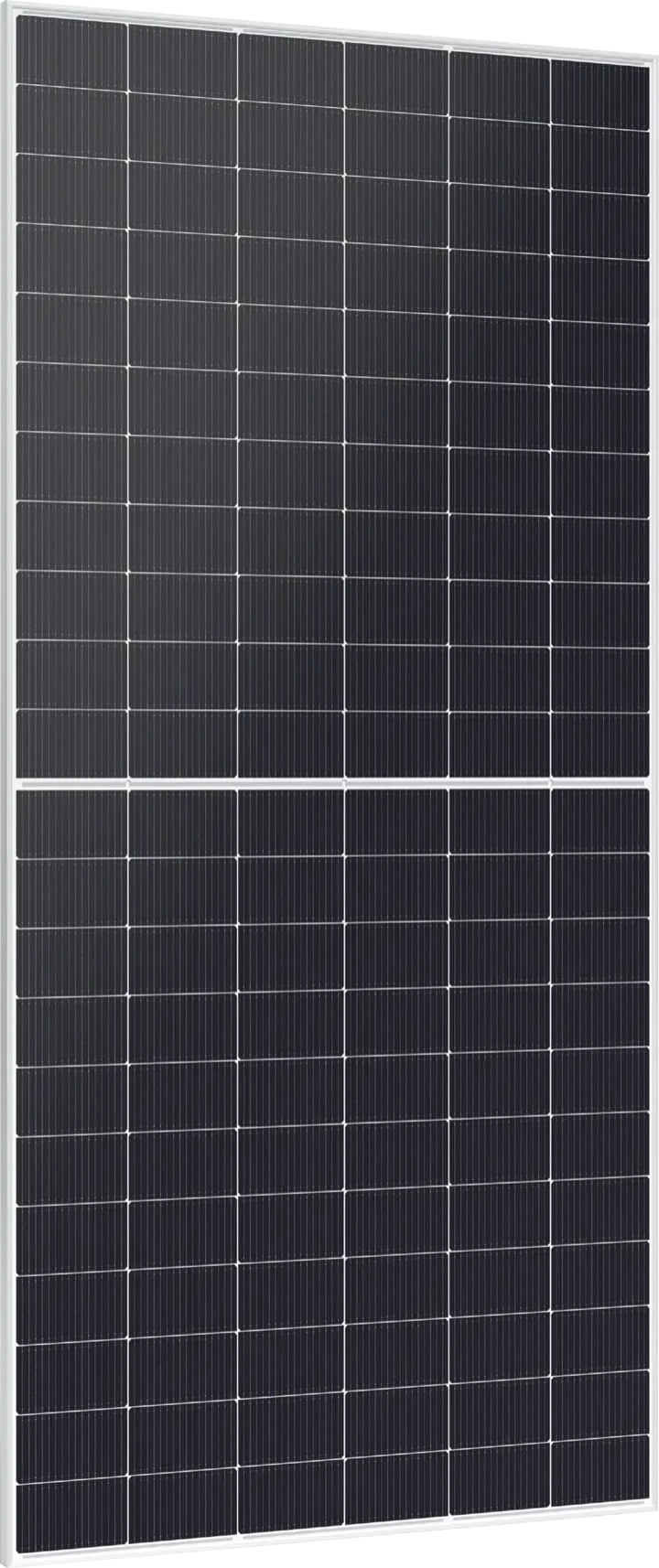

Pallet of 36 JA Solar 635W Bifacial Glass-Glass Mono Silver photovoltaic panels

The JA Solar 635W Bifacial Silver Frame photovoltaic panel is the bifacial JA Solar JAM66D45 LB module with n-type double glass construction. The 635 W variant is designed for installations requiring high single-panel power and operation with rear-side energy yield.

Go to full description

€3,930.35

Regular price: €4,716.42

-17%

The lowest price during 30 days prior to the reduction: €3,144.28

+25%

The promotion runs until 15 August 2026

Shipping costs are not included in the price.

Quantity

szt.

Availability:

na wyczerpaniu

Ask about the product

Shipping time: 48 godzin

Panel parameters

Panel power 600-650 W
Bifacial Yes
Glass-glass Yes
Frame colour Silver
Sales unit Pallet
Panel power [W] 635

Opis

The JA Solar 635W Bifacial Silver Frame photovoltaic panel is the bifacial JA Solar JAM66D45 LB module with n-type double glass construction. The 635 W variant is designed for installations requiring high single-panel power and operation with rear-side energy yield.

JA Solar is a global photovoltaic module manufacturer known for its n-type cell technology and DeepBlue series. Modules from this brand are designed with a focus on high efficiency, parameter stability, and performance in roof and commercial installations.

Electrical parameters

Maximum power Pmax: 635 W
Open circuit voltage Voc: 49.10 V
Maximum power point voltage Vmp: 40.94 V
Short-circuit current Isc: 16.21 A
Current at maximum power point Imp: 15.51 A
Module efficiency: 23.5%
Power tolerance: 0~+3%
Maximum system voltage: 1500 V DC
Maximum series fuse: 35 A
Temperature coefficient of Pmax: -0.290%/°C
Temperature coefficient of Voc: -0.250%/°C
Temperature coefficient Isc: +0.045%/°C
Bifaciality: 80% +/-5%

Mechanical parameters

Dimensions: 2382 x 1134 x 30 mm
Weight: 32.8 kg
Cells: 132 (6 x 22), mono
Glass: 2.0 mm / 2.0 mm
Frame: Silver Frame
Junction box: IP68, 3 diodes
Connector: QC 4.10-351 / MC4-EVO2A
Cables: portrait 400 mm (+) / 200 mm (-), landscape 1400 mm (+) / 1400 mm (-)
Packaging: 36 pcs./pallet, 648 pcs./40HQ container
Mechanical load: front 5400 Pa, back 2400 Pa
Operating temperature range: -40°C to +85°C
Protection class: Class II
Fire rating: UL Type 29 / Class C
