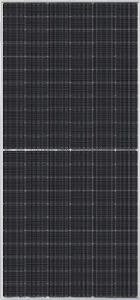

Suntech 620W N-Type TOPCon Bifacial Mono photovoltaic panel
Suntech STP620S-H66-NSH+ is an advanced bifacial photovoltaic module built with N-Type TOPCon technology and a half-cell design. Thanks to its bifacial construction and glass on both sides, the panel delivers high efficiency and a higher energy yield even in low-light conditions.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Ask about the product
Administratorem danych osobowych jest Master Investment sp. z o.o.. Przetwarzamy je w celu przesłania odpowiedzi na zapytanie. Więcej informacji dotyczących przetwarzania danych osobowych znajduje się w polityce prywatności.
Product code: ME5323
Cechy produktu
Panel parameters
- Panel power 600-650 W
- Cell type TOPCon
- Bifacial Yes
- Sales unit Single unit
- Module height over 200 cm
- Panel power [W] 620
- Module height [cm] 238.2
Opis
The Suntech STP620S-H66-NSH+ is a modern bifacial photovoltaic module made with N-Type TOPCon half-cell technology. Thanks to its bifacial design and glass on both sides, the panel achieves high energy efficiency and provides increased energy yield even in challenging lighting conditions.
Suntech is a global leader in photovoltaic module manufacturing, known for adopting advanced technologies and ensuring product reliability. For years, it has supplied renewable energy solutions worldwide, combining high quality with an innovative approach to photovoltaics.
Electrical parameters
- Maximum power (Pmax): 620 W
- Module efficiency: 23.0%
- Maximum power point voltage (Vmp): 40.82 V
- Maximum power point current (Imp): 15.19 A
- Open circuit voltage (Voc): 49.10 V
- Short circuit current (Isc): 16.07 A
- Power tolerance: 0/+5 W
- Maximum system voltage: 1500 V DC
- Maximum fuse current in series: 35 A
- Power temperature coefficient: -0.29%/°C
Mechanical parameters
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.5 kg
- Number of cells: 132 (6×22)
- Cell type: N-type monocrystalline silicon
- Front/rear glass: 2.0 + 2.0 mm semi-tempered glass
- Junction box rating: IP68 (3 bypass diodes)
- Connectors: Wuxi Suntech STP-XC4-4 / Staubli PV-KST4-EVO2A/xy
- Frame: anodised aluminium
- Connection cable: 4.0 mm², length (-) 350 mm, (+) 160 mm
- Packing configuration: 36 pcs per pallet, 720 pcs per container
